EN3C3FCX
ActiveSwitchcraft Inc.

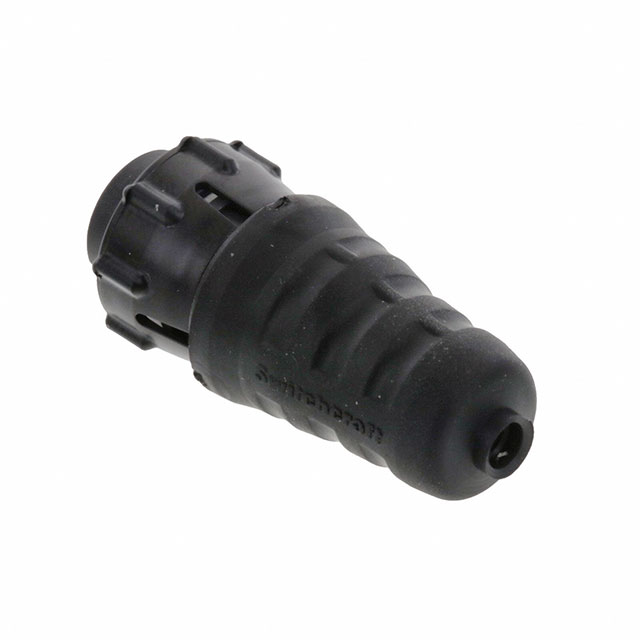

CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3C3FCX
ActiveSwitchcraft Inc.
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C3FCX | EN3C3F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.38 in |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C3F Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Fastening Type | Contact Finish - Mating | Cable Opening [diameter] | Cable Opening [diameter] | Applications | Insert Material | Connector Type | Current Rating (Amps) | Voltage Rating | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Color | Primary Material | Mounting Type | Material Flammability Rating | Backshell Material, Plating | Contact Material | Features | Ingress Protection | Termination | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C3F16X | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 13 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | |||||
Switchcraft Inc. EN3C3FCKX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 7.5 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | Crimp | ||||
Switchcraft Inc. EN3C3FX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 7.5 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | |||||
Switchcraft Inc. EN3C3FCX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 7.5 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | Crimp | ||||
Switchcraft Inc. EN3C3FLX | Bayonet Lock | Gold | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 7.5 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | 5.84 mm | 0.38 in | 9.65 mm | 0.23 in | |||
Switchcraft Inc. EN3C3FKX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 7.5 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | |||||
Switchcraft Inc. EN3C3F16CX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 13 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | Crimp | ||||
Switchcraft Inc. EN3C3F16CKX | Bayonet Lock | Gold | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | General Purpose, Instrumentation, Marine, Medical | Elastomer | Female Sockets, Plug | 13 A | 250 VAC | Keyed | 65 °C | -40 °C | Unshielded | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Thermoplastic | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | Crimp |
