Description
General part information

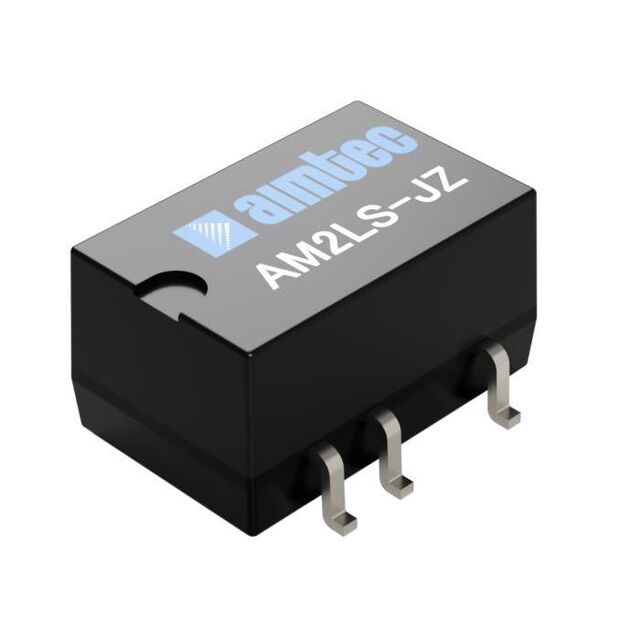

AM2LS-1205SJZ
Isolated Module DC DC Converter 1 Output 5V 400mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AM2LS-1205SJZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 400 mA |
| Efficiency | 83 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | SMD |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.52 in |
| Size / Dimension Width | 0.33 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
