2703198
ActivePhoenix Contact

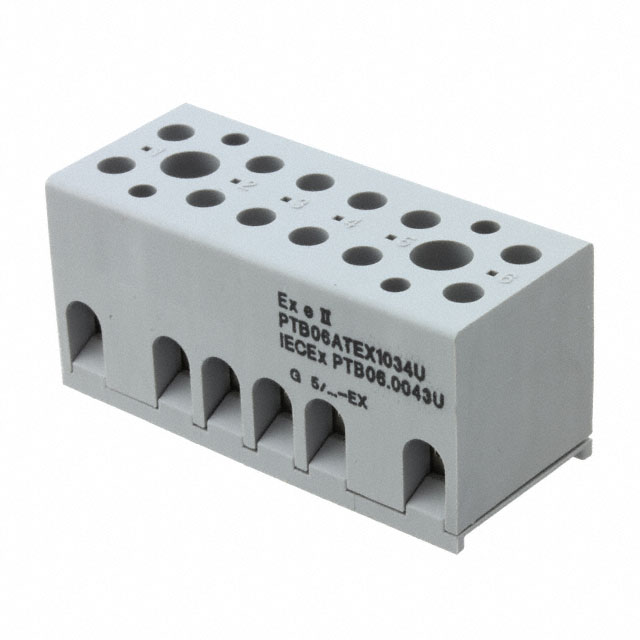

TERM BLOCK PNL MNT 6 POS
2703198
ActivePhoenix Contact
TERM BLOCK PNL MNT 6 POS
Description
General part information
2703198
6 Circuit Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | 2703198 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Gray |
| Current Rating | 32 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 6 |
| Number of Rows | 2 |
| Number of Wire Entries | 12 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 275 VAC |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
