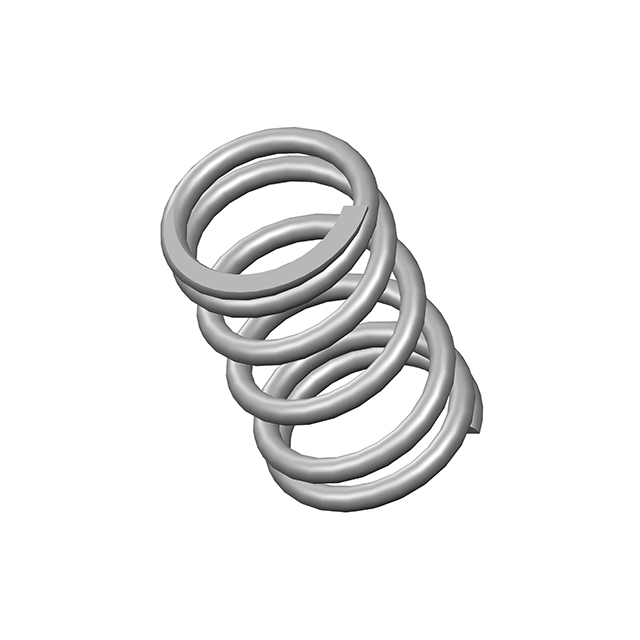

71688CS
ActiveCentury Spring Corp
COMP O= .540,L= .88,W= .063
71688CS
ActiveCentury Spring Corp
COMP O= .540,L= .88,W= .063
Description
General part information
71688CS
COMP O= .540,L= .88,W= .063
Technical Specifications
Parameters and characteristics for this part
| Specification | 71688CS |
|---|---|
| Diameter - Inside | 0.414 in |
| Diameter - Outside | 0.54 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.88 in |
| Material | Music Wire |
| Rate (lbs/in) | 53 lbs/in |
| Type | Compression |
| Wire Diameter | 0.063 in |
