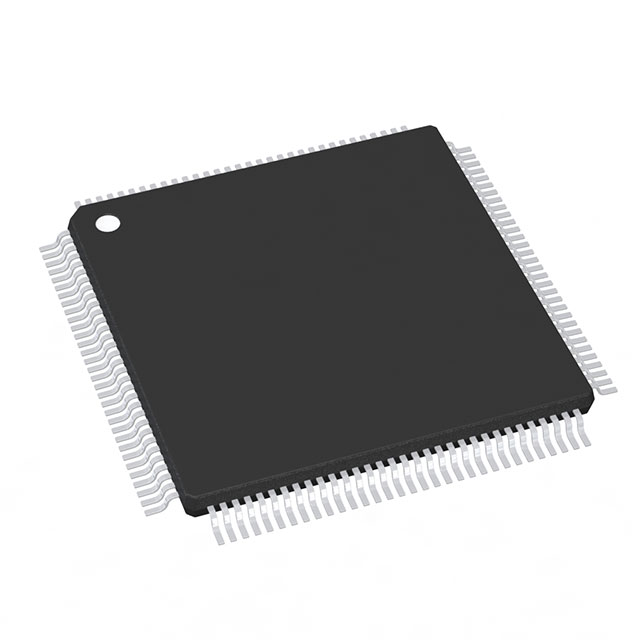

M483KGCAE2A
ActiveNuvoton Technology Corporation
IC MCU 32BIT 256KB FLASH 128LQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M483KGCAE2A
ActiveNuvoton Technology Corporation
IC MCU 32BIT 256KB FLASH 128LQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M483KGCAE2A | M483 Series |
|---|---|---|
| Board Type | - | Evaluation Platform |
| Connectivity | LINbus, EBI/EMI, CANbus, USB, SPI, SmartCard, SCI, I2C | LINbus, EBI/EMI, CANbus, USB, SPI, SmartCard, SCI, I2C |
| Contents | - | Board(s) |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F, ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters | A/D 16x12b SAR, D/A 2x12b | D/A 1x12b, A/D 16x12b SAR, D/A 2x12b, A/D 24x12b SAR |
| Interconnect System | - | Arduino R3 Shield |
| Mounting Type | Surface Mount | Surface Mount, Fixed |
| Number of I/O | 100 I/O | 52 - 100 I/O |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | External, Internal | External, Internal |
| Package / Case | 128-LQFP | 128-LQFP, 64-LQFP |
| Peripherals | LCD, DMA, WDT, PWM, I2S, LVR, Brown-out Detect/Reset, POR | LCD, DMA, WDT, PWM, I2S, LVR, Brown-out Detect/Reset, POR |
| Platform | - | NuMaker |
| Program Memory Size | 256 KB | 128 - 256 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 128 K | 64 - 128 K |
| Speed | 192 MHz | 192 MHz |
| Supplier Device Package | 128-LQFP (14x14) | 128-LQFP (14x14), 64-LQFP (7x7) |
| Type | - | MCU 32-Bit |
| Utilized IC / Part | - | M483KGCAE2A |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V | 1.8 V |
M483 Series
IC MCU 32BIT 256KB FLASH 128LQFP
| Part | Core Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Peripherals | Supplier Device Package | Program Memory Size | Package / Case | Connectivity | Oscillator Type | Program Memory Type | Mounting Type | Number of I/O | RAM Size | Speed | Data Converters | Core Processor | Platform | Board Type | Utilized IC / Part | Type | Interconnect System | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nuvoton Technology Corporation M483KGCAE | 32-Bit Single-Core | 105 °C | -40 °C | 1.8 V | 3.6 V | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT | 128-LQFP (14x14) | 256 KB | 128-LQFP | CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB | External, Internal | FLASH | Surface Mount | 100 I/O | 128 K | 192 MHz | A/D 16x12b SAR, D/A 1x12b | ARM® Cortex®-M4F | ||||||
Nuvoton Technology Corporation NK-M483KG | Fixed | ARM® Cortex®-M4 | NuMaker | Evaluation Platform | M483KGCAE2A | MCU 32-Bit | Arduino R3 Shield | Board(s) | ||||||||||||||||
Nuvoton Technology Corporation M483SGCAE | 32-Bit Single-Core | 105 °C | -40 °C | 1.8 V | 3.6 V | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT | 64-LQFP (7x7) | 256 KB | 64-LQFP | CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB | External, Internal | FLASH | Surface Mount | 52 | 128 K | 192 MHz | A/D 16x12b SAR, D/A 1x12b | ARM® Cortex®-M4F | ||||||
Nuvoton Technology Corporation M483KGCAE2A | 32-Bit Single-Core | 105 °C | -40 °C | 1.8 V | 3.6 V | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT | 128-LQFP (14x14) | 256 KB | 128-LQFP | CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB | External, Internal | FLASH | Surface Mount | 100 I/O | 128 K | 192 MHz | A/D 16x12b SAR, D/A 2x12b | ARM® Cortex®-M4F | ||||||
Nuvoton Technology Corporation M483SGCAE2A | 32-Bit Single-Core | 105 °C | -40 °C | 1.8 V | 3.6 V | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT | 64-LQFP (7x7) | 256 KB | 64-LQFP | CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB | External, Internal | FLASH | Surface Mount | 52 | 128 K | 192 MHz | A/D 24x12b SAR, D/A 1x12b | ARM® Cortex®-M4F | ||||||
Nuvoton Technology Corporation M483SE8AE | 32-Bit Single-Core | 105 °C | -40 °C | 1.8 V | 3.6 V | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT | 64-LQFP (7x7) | 128 KB | 64-LQFP | CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB | External, Internal | FLASH | Surface Mount | 52 | 64 K | 192 MHz | A/D 16x12b SAR, D/A 1x12b | ARM® Cortex®-M4F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 180 | $ 4.48 | |
Description
General part information
M483 Series
ARM® Cortex®-M4F NuMicro® M480 Microcontroller IC 32-Bit Single-Core 192MHz 256KB (256K x 8) FLASH 128-LQFP (14x14)
