TFM201210ALMAR56MTAA
ActiveTDK Corporation
INDUCTORS FOR POWER CIRCUITS, AU
TFM201210ALMAR56MTAA
ActiveTDK Corporation
INDUCTORS FOR POWER CIRCUITS, AU
Description
General part information
TFM201210ALMAR56MTAA

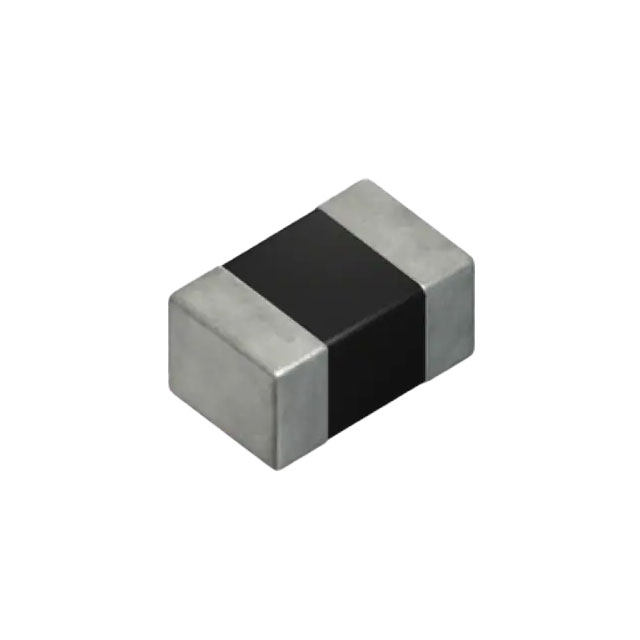

560 nH Shielded Thin Film Inductor 2.8 A 49mOhm Max 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TFM201210ALMAR56MTAA |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating | 2.8 A |
| DC Resistance (DCR) (Max) | 49 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 560 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Thin Film |
