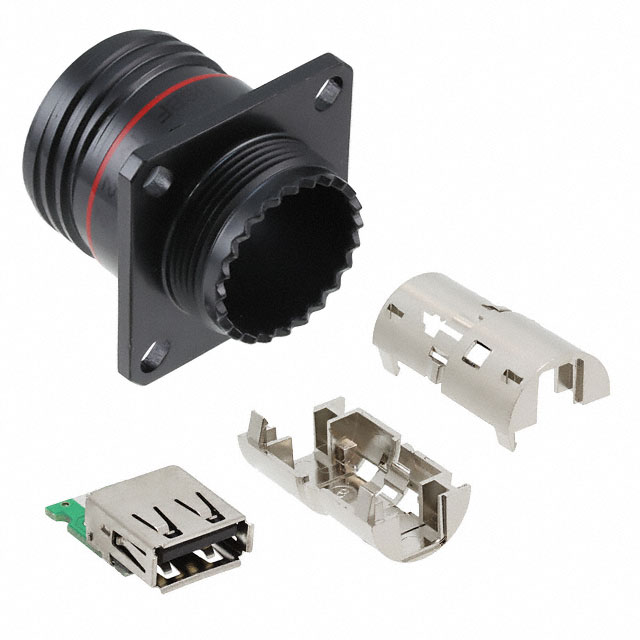

USBFTV22ZN
ActiveAmphenol Socapex
USB CONN, 2.0 TYPE A, RCPT, 4POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
USBFTV22ZN
ActiveAmphenol Socapex
USB CONN, 2.0 TYPE A, RCPT, 4POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USBFTV22ZN |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Features | Circular Threaded Coupling |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
USBFTV22ZN
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount
