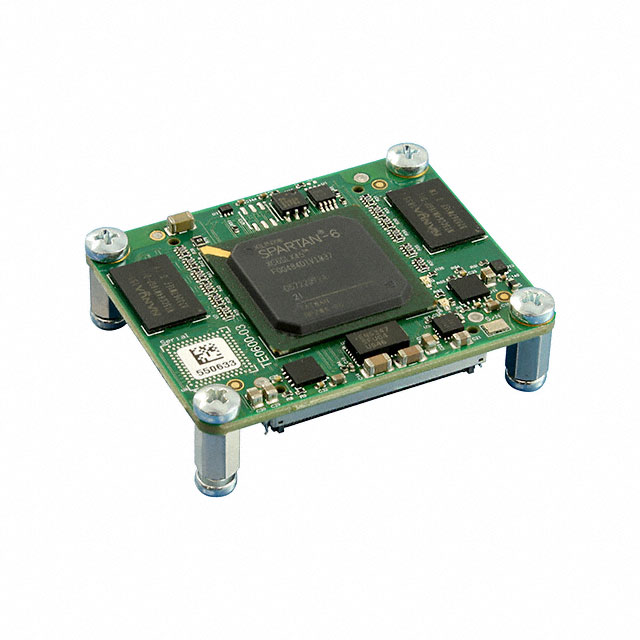

TE0600-03IN

Obsolete

Trenz Electronic

IC MOD SPARTAN-6 125MHZ 256MB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MOD SPARTAN-6 125MHZ 256MB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE0600-03IN	TE0600 Series

Connector Type	Samtec LSHM	Samtec LSHM
Core Processor	Spartan-6 LX-45	Spartan-6 LX-100, Spartan-6 LX-45, Spartan-6 LX-150
Flash Size	16 MB	16 MB
Module/Board Type	FPGA Core	FPGA Core
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
RAM Size	256 MB	1 - 256 GB
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [x]	1.97 "	1.97 "
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Speed	125 MHz	125 MHz

IC MODULE LX100 125MHZ 1GB 16MB

Part	Speed	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Flash Size	Core Processor	Module/Board Type	RAM Size	Connector Type
Trenz Electronic TE0600-03BM	125 MHz	50 mm	1.97 "	40 mm	1.57 "	70 °C	0 °C	16 MB	Spartan-6 LX-100	FPGA Core	1 GB	Samtec LSHM
Trenz Electronic TE0600-03IN	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-45	FPGA Core	256 MB	Samtec LSHM
Trenz Electronic TE0600-03IMVF	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-150	FPGA Core	1 GB	Samtec LSHM
Trenz Electronic TE0600-03IVFN	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-150	FPGA Core	256 MB	Samtec LSHM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0600 Embedded Module Spartan-6 LX-45 125MHz 256MB 16MB

Technical documentation and resources

No documents available
