BC-CGS-161607
ActiveBoxco

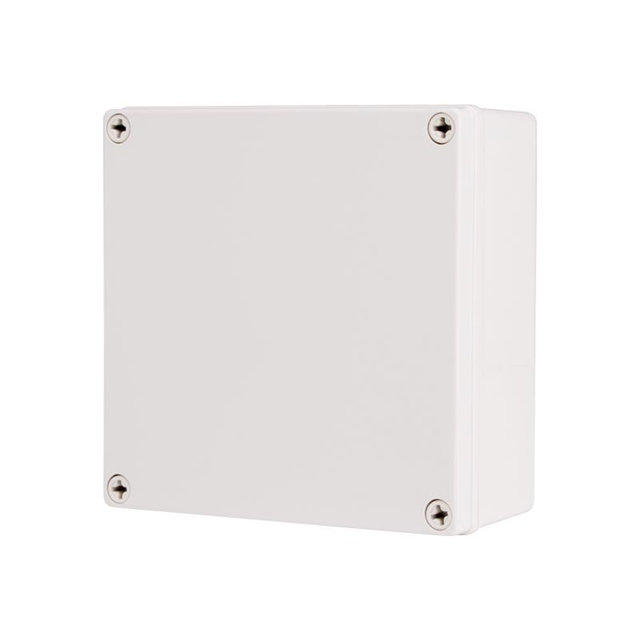

BOX PLAS LGT GRY 6.3"L X 6.3"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-CGS-161607
ActiveBoxco
BOX PLAS LGT GRY 6.3"L X 6.3"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC-CGS-161607 | BC-CG Series |
|---|---|---|
| Area (L x W) | 256 cm˛ | 22.3 - 1419 cm˛ |
| Area (L x W) | 39.7 in˛ | 9.57 - 220 in˛ |
| Area (L x W) | - | 322 cm˛ |
| Area (L x W) | - | 49.9 in˛ |
| Area (L x W) | - | 144 cm˛ |
| Color | Light Gray | Light Gray |
| Container Type | Box | Box |
| Design | Lift-Off Screw Cover | Lift-Off Screw Cover, Stainless Steel Latch, Hinged Door |
| Features | Sealing Gasket, Wall Mount, Flame Retardant | Sealing Gasket, Wall Mount, Flame Retardant, Hinged, Latches, Lockable, Mounting Brackets |
| Height [z] | 70 mm | 55 - 255 mm |
| Height [z] | 2.756 " | 2.165 - 10.039 in |
| Material | Plastic, Polycarbonate/Fiberglass | Plastic, Polycarbonate/Fiberglass |
| Material Flammability Rating | UL94 V-0, UL94 5VA, UL94 HB | UL94 V-0, UL94 5VA, UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 |
| Size / Dimension | - | 200 mm |
| Size / Dimension | - | 100 - 200 mm |
| Size / Dimension [x] | 6.299 " | 3.74 - 28.74 " |
| Size / Dimension [x] | 160 mm | 7.874 - 730 mm |
| Size / Dimension [y] | 6.299 in | 2.559 - 20.866 in |
| Size / Dimension [y] | 160 mm | 7.874 - 530 mm |
| Thickness | - | 4.5 mm |
| Thickness | - | 0.177 in |
BC-CG Series
BOX PLAS LGT GRY 6.3"L X 3.15"W
| Part | Material Flammability Rating | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Ratings | Material | Color | Height [z] | Height [z] | Area (L x W) | Area (L x W) | Container Type | Design | Features | Area (L x W) [custom] | Area (L x W) [custom] | Thickness [custom] | Thickness [custom] | Size / Dimension [x] | Size / Dimension [y] | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Boxco BC-CGS-081605 | UL94 5VA, UL94 HB, UL94 V-0 | 80 mm | 160 mm | 3.15 in | 6.299 " | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.165 in | 55 mm | 128 cm˛ | 19.8 in˛ | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | |||||||
Boxco BC-CGS-142309 | UL94 5VA, UL94 HB, UL94 V-0 | 140 mm | 230 mm | 5.512 in | 9.055 in | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 3.74 in | 95 mm | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | 322 cm˛ | 49.9 in˛ | |||||||
Boxco BC-CGP-507025 | UL94 5VA, UL94 HB, UL94 V-0 | 530 mm | 730 mm | 20.866 in | 28.74 in | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 10.039 in | 255 mm | Box | Hinged Door, Stainless Steel Latch | Flame Retardant, Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | 4.5 mm | 0.177 in | |||||||
Boxco BC-CGP-353518 | UL94 5VA, UL94 HB, UL94 V-0 | 350 mm | 350 mm | 13.78 in | 13.78 in | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 7.087 in | 180 mm | 1225 cm² | 190 in² | Box | Hinged Door, Stainless Steel Latch | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | |||||||
Boxco BC-CGS-202016 | UL94 5VA, UL94 HB, UL94 V-0 | 7.874 " | 7.874 " | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 6.299 in | 160 mm | 400 cm² | 62 in² | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | 200 mm | 200 mm | |||||||
Boxco BC-CGS-081807 | UL94 5VA, UL94 HB, UL94 V-0 | 80 mm | 180 mm | 3.15 in | 7.087 " | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.756 " | 70 mm | 22.3 in˛ | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | 144 cm˛ | |||||||
Boxco BC-CGS-102007 | UL94 5VA, UL94 HB, UL94 V-0 | 200 mm | 3.937 in | 7.874 in | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.756 " | 70 mm | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | 100 mm | |||||||||
Boxco BC-CGS-161607 | UL94 5VA, UL94 HB, UL94 V-0 | 160 mm | 160 mm | 6.299 in | 6.299 " | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.756 " | 70 mm | 256 cm˛ | 39.7 in˛ | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | |||||||
Boxco BC-CGS-060905 | UL94 5VA, UL94 HB, UL94 V-0 | 65 mm | 95 mm | 2.559 in | 3.74 " | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.165 in | 55 mm | 61.8 cm˛ | 9.57 in˛ | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount | |||||||
Boxco BC-CGS-151507 | UL94 5VA, UL94 HB, UL94 V-0 | 150 mm | 150 mm | 5.906 " | 5.906 in | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Plastic, Polycarbonate/Fiberglass | Light Gray | 2.953 in | 75 mm | 225 cm² | 34.9 in˛ | Box | Lift-Off Screw Cover | Flame Retardant, Sealing Gasket, Wall Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.75 | |
Description
General part information
BC-CG Series
Box Plastic, Polycarbonate/Fiberglass Light Gray Lift-Off Screw Cover 6.299" L x 6.299" W (160.00mm x 160.00mm) X 2.756" (70.00mm)
