83703 002500

Active

Belden Inc.

CABLE 3COND 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83703 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	0.206 "
Jacket (Insulation) Diameter [diameter]	5.23 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Voltage	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Shield Type	Shield Coverage	Conductor Material	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Shield Material	Usage	Ratings	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 83703 002500	19 Strands	29 AWG	0.206 "	5.23 mm	3	300 V	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP) Plenum	Multi-Conductor	Braid Foil	85 % 100 %	Copper Tinned	Red	200 °C	-70 °C	500 '	152.4 m	Aluminum Copper Tinned	Audio Control Instrumentation	UL Style CMP	16 AWG	0.356 mm	0.014 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 11.68

General part information

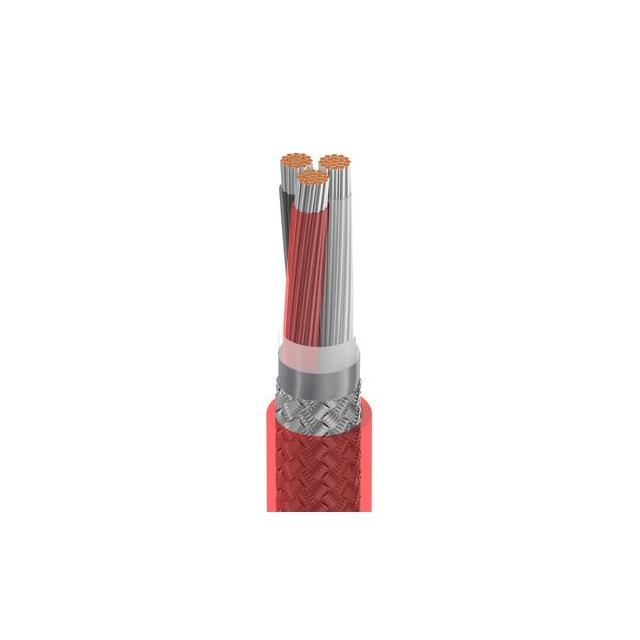

3 Conductor Multi-Conductor Cable Red 16 AWG Foil, Braid 500.0' (152.4m)
