EGG.1T.307.CLL

Active

LEMO

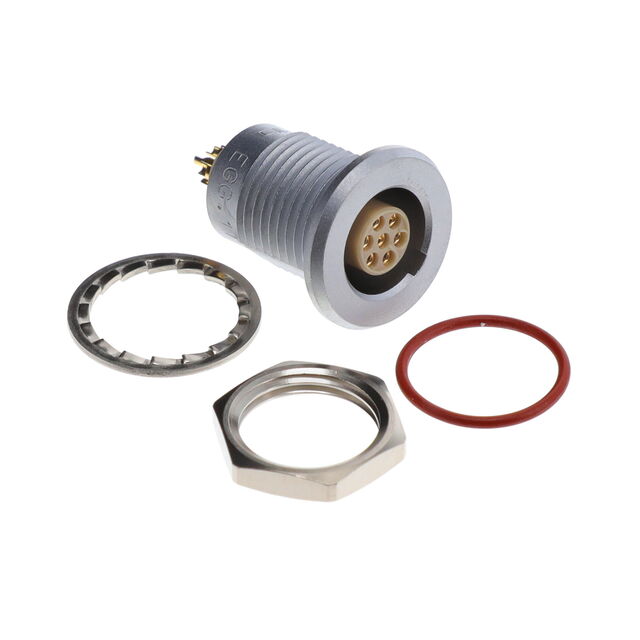

CONN PNL MNT RCPT F SOLDER 7POS

Search across all available documentation for this part.

Active

LEMO

CONN PNL MNT RCPT F SOLDER 7POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.1T.307.CLL	EGG.1T Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	1.5 - 7 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	7	7 - 10
Number of Positions	-	16
Operating Temperature [Max]	250 °C	200 - 250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	307 - 316
Shielding	Shielded	Shielded

CONN RCPT FMALE 10P SOLDER CUP

Part	Contact Finish - Mating	Fastening Type	Connector Type	Primary Material	Ingress Protection	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Mounting Feature	Shell Finish	Material Flammability Rating	Contact Material	Shell Size - Insert	Shell Material	Current Rating (Amps)	Insert Material	Orientation	Number of Positions
LEMO EGG.1T.310.CLL	Gold	Push-Pull	Receptacle, Female Sockets	Metal	IP66/IP68	Silver	10	-55 °C	200 °C	59 Áin	1.5 Ám	Shielded	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Bronze	310	Brass	2.5 A	Polyetheretherketone (PEEK)	G
LEMO EGG.1T.307.CLL	Gold	Push-Pull	Receptacle, Female Sockets	Metal	IP68 - Dust Tight, Waterproof	Silver	7	-55 °C	250 °C			Shielded	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Bronze	307	Brass	7 A	Polyetheretherketone (PEEK)	G
LEMO EGG.1T.316.CLL	Gold	Push-Pull	Receptacle, Female Sockets	Metal	IP66/IP68	Silver		-55 °C	200 °C	59 Áin	1.5 Ám	Shielded	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Bronze	316	Brass	1.5 A	Polyetheretherketone (PEEK)	G	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
