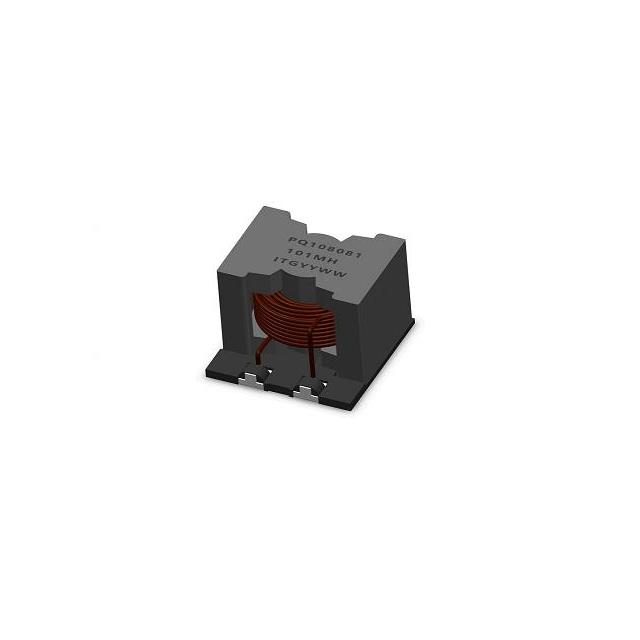

PQ108081H-101MHF
ActiveITG Electronics, Inc.
100.00UH, 20%, 28.50MOHM, 10.30A
PQ108081H-101MHF
ActiveITG Electronics, Inc.
100.00UH, 20%, 28.50MOHM, 10.30A
Description
General part information
PQ108081H-101MHF
100 µH Drum Core, Wirewound Inductor 10.5 A 100mOhm 3-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ108081H-101MHF |
|---|---|
| Current - Saturation (Isat) | 10.1 A |
| Current Rating | 10.5 A |
| DC Resistance (DCR) | 100 mOhm |
| Height - Seated (Max) | 0.787 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 300 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3-SMD |
| Package Name | 3-SMD |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 1.1 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
