PEC34DBAN

Active

Sullins Connector Solutions

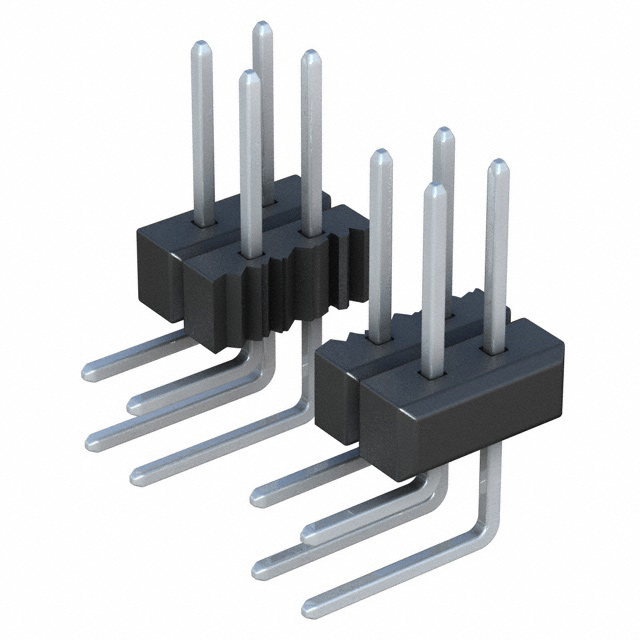

BOARD CONNECTOR, 68 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

PEC34DBAN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 68 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC34DBAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC34 Series

Part	Contact Material	Style	Insulation Height	Insulation Height	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Mounting Type	Number of Rows	Contact Type	Fastening Type	Shrouding	Current Rating (Amps)	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PEC34SFDN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	21.29 mm	0.838 in	UL94 V-0	10.67 mm	0.42 in	34	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.318 "	8.08 mm	Square	Through Hole	1	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PEC34DAEN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	21.59 mm	0.85 in	UL94 V-0			68	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.23 in		Square	Through Hole	2	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	13.21 mm	0.52 "	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC34DAAN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	11.43 mm	0.45 "	UL94 V-0	3.05 mm	0.12 in	68	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.23 in		Square	Through Hole	2	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)			5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC34SFCN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	18.75 mm	0.738 "	UL94 V-0	8.13 mm	0.32 in	34	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.318 "	8.08 mm	Square	Through Hole	1	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PEC34DFBN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	16.21 mm	0.638 in	UL94 V-0			68	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.318 "	8.08 mm	Square	Through Hole	2	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	5.58 mm	0.22 in		2.54 mm	0.1 in
Sullins Connector Solutions PEC34DBAN	Phosphor Bronze	Board to Board Cable	0.24 in	6.1 mm	Solder	2.54 µm	100 µin			UL94 V-0			68	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.23 in		Square	Through Hole Right Angle	2	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC34SAFN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	24.13 mm	0.95 in	UL94 V-0			34	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.23 in		Square	Through Hole	1	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	15.75 mm	0.62 in	5.84 mm
Sullins Connector Solutions PEC34SACN	Phosphor Bronze	Board to Board Cable	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	0.65 in		UL94 V-0	8.13 mm	0.32 in	34	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.23 in		Square	Through Hole	1	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)			5.84 mm			16.51 mm
Sullins Connector Solutions PEC34SGAN	Phosphor Bronze	Board to Board Cable	0.14 in	3.56 mm	Solder	2.54 µm	100 µin			UL94 V-0			34	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.318 "	8.08 mm	Square	Through Hole Right Angle	1	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in
Sullins Connector Solutions PEC34DGBN	Phosphor Bronze	Board to Board Cable	0.24 in	6.1 mm	Solder	2.54 µm	100 µin			UL94 V-0	5.08 mm	0.2 in	68	Tin	125 °C	-65 ░C	Breakaway Header	0.1 in	2.54 mm	0.318 "	8.08 mm	Square	Through Hole Right Angle	2	Male Pin	Push-Pull	Unshrouded	3 A	Black	All	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)				2.54 mm	0.1 in
