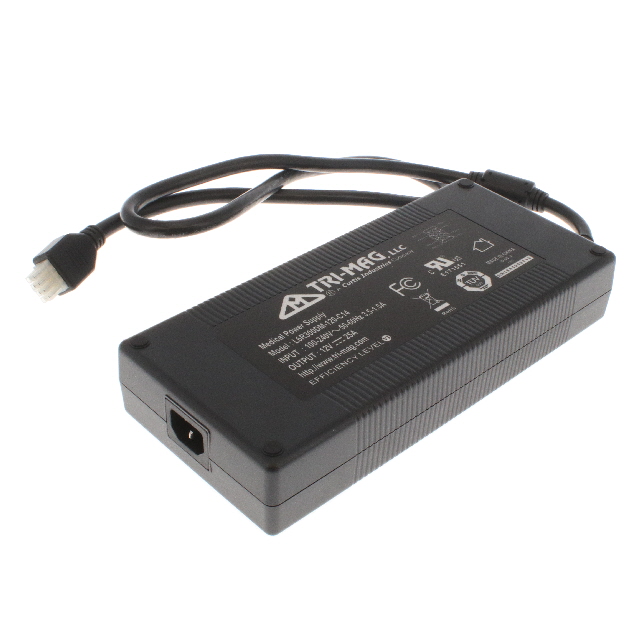

L6R300DM-120-C14
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 12V 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L6R300DM-120-C14 |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, cULus, EN, FCC, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 25 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Rectangular, 8 Position |
| Power (Watts) | 300 W |
| Region Utilized | International |
| Size / Dimension [x] | 10 in |
| Size / Dimension [x] | 254 mm |
| Size / Dimension [y] | 116 mm |
| Size / Dimension [y] | 4.57 in |
| Size / Dimension [z] | 47 mm |
| Size / Dimension [z] | 1.85 in |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 154.60 | |
Description
General part information
L6R300DM-120-C14
12V 300 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
