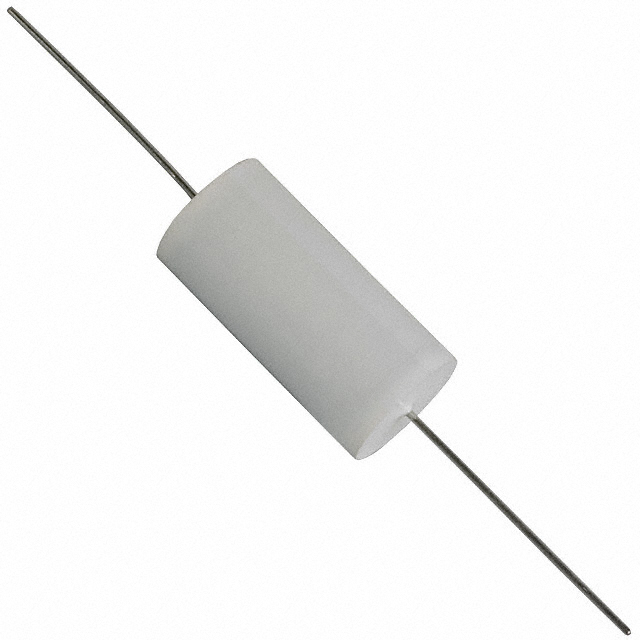

940C30P15K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.15UF 10% 3KVDC AXIAL
940C30P15K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.15UF 10% 3KVDC AXIAL
Description
General part information
940C30P15K-F
0.15 µF Film Capacitor 500V 3000V (3kV) Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 940C30P15K-F |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 0.15 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 8 mOhm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 1.063 in |
| Size / Dimension Length | 1.811 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 3000 V |
