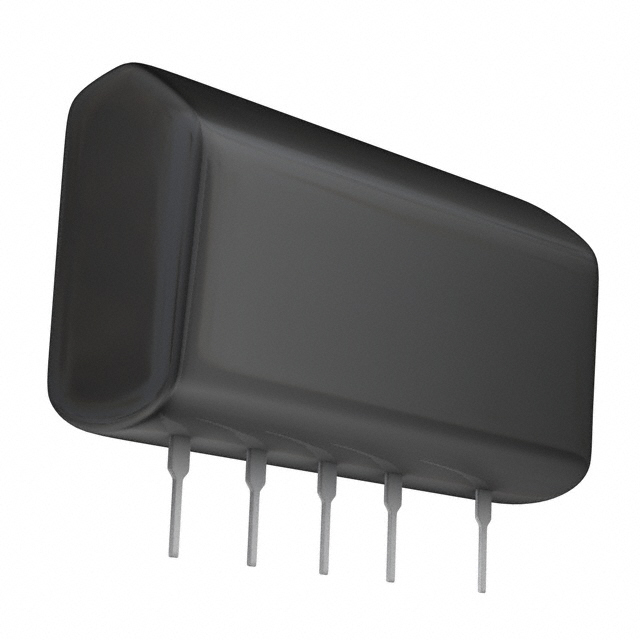

BP5041A
ObsoleteRohm Semiconductor
AC/DC CONVERTER 12V 1W
BP5041A
ObsoleteRohm Semiconductor
AC/DC CONVERTER 12V 1W
Description
General part information
BP5041A
Enclosed AC DC Converters 1 Output 12V 100mA 160 ~ 276 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BP5041A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Efficiency | 62 % |
| Line Regulation | 20 mV |
| Load Regulation (mV) | 50 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 5 Leads |
| Package Name | 10-SIP Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.76 in |
| Size / Dimension Length | 1.28 in |
| Size / Dimension Width | 0.45 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 276 VAC |
| Voltage - Input (AC) Minimum | 160 VAC |
| Voltage - Output 1 | 12 V |
