MPDB67403
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
MPDB67403
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
Description
General part information
MPDB67403

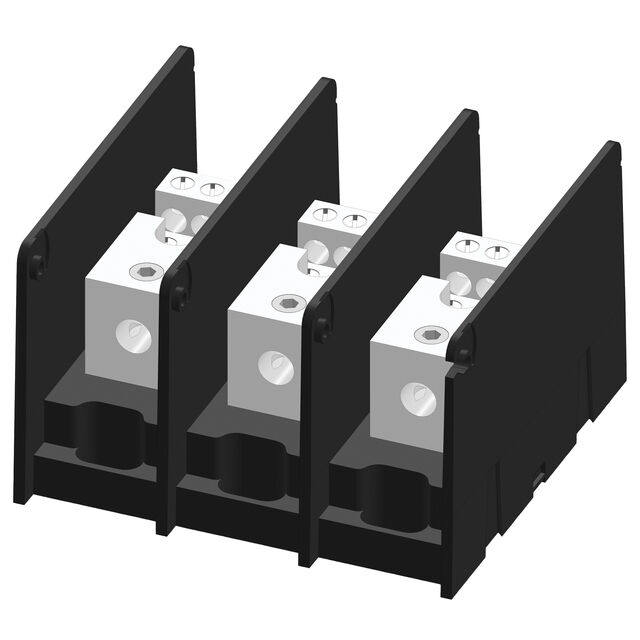

3 Pole Power Stud Terminal Block 380 A 1000 V
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDB67403 |
|---|---|
| Current Rating | 380 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Cross-sectional Area | 500 MCM |
| Line Side Wire/Stud Designation | #4CU/AL |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size (Area) | 500 MCM |
| Load Side Wire/Stud Size (Designation) | #4CU/AL |
| Number of Poles | 3 |
| Type | Power Stud Terminal Block |
| Voltage - Rated | 1000 V |
