Specification	AMR462N

Current - Continuous Drain (Id) (Ta)	28 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On)	4.5 V
Drive Voltage (Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	60 nC
Input Capacitance (Ciss) (Max)	7283 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

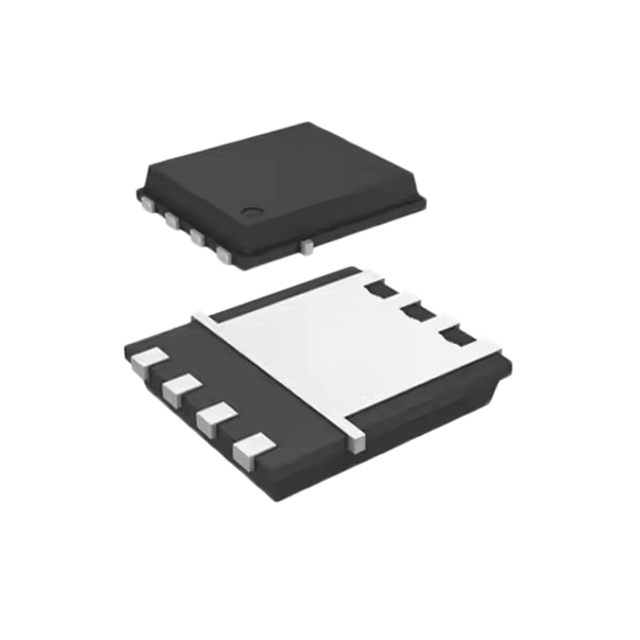

Package / Case	8-PowerVDFN
Package Length	5 mm
Package Name	8-DFN
Package Width	6 mm
Power Dissipation (Max)	5 W
Rds On (Max)	4.3 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	1 V
