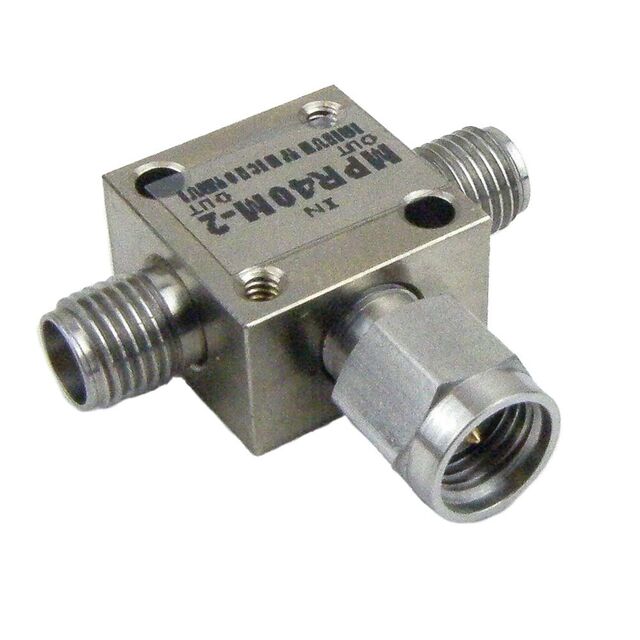

MPR40M-2
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
MPR40M-2
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
Description
General part information
MPR40M-2
RF Power Divider 0 Hz ~ 40 GHz 1.9 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | MPR40M-2 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 0 Hz |
| Insertion Loss | 9 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.35 in |
| Size / Dimension Length | 0.579 in |
| Size / Dimension Width | 0.579 in |
| VSWR (Max) | 1.9 |
