CAA-8.000-18-3050-X-R
ActiveAker Technology Corp

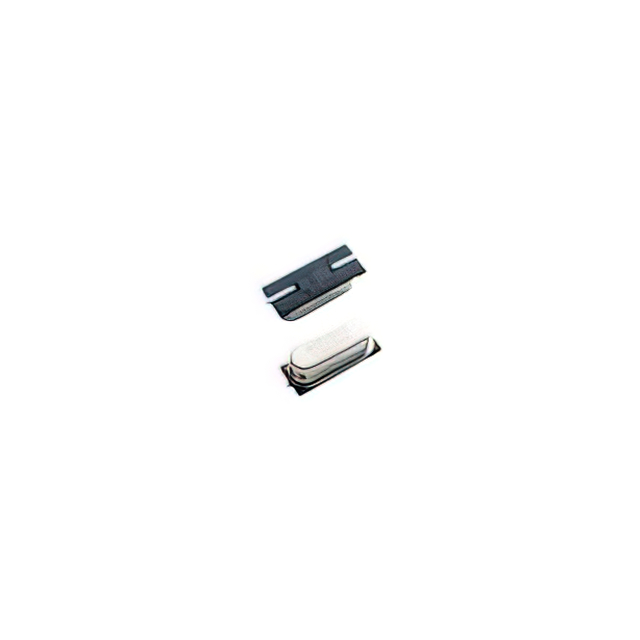

CRYSTAL 8MHZ 18PF SMD
CAA-8.000-18-3050-X-R
ActiveAker Technology Corp
CRYSTAL 8MHZ 18PF SMD
Description
General part information
CAA-8.000-18-3050-X-R
8 MHz ±30ppm Crystal 18pF 60 Ohms 2-SMD, Flat Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CAA-8.000-18-3050-X-R |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.138 in, 0.169 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Flat Lead, 2-SMD, HC-49/US |
| Size / Dimension Length | 0.447 in, 0.449 in |
| Size / Dimension Width | 0.183 in, 0.185 in |
| Type | MHz Crystal |
