MB-V09-530-S(M)D
ActiveFloyd Bell Inc

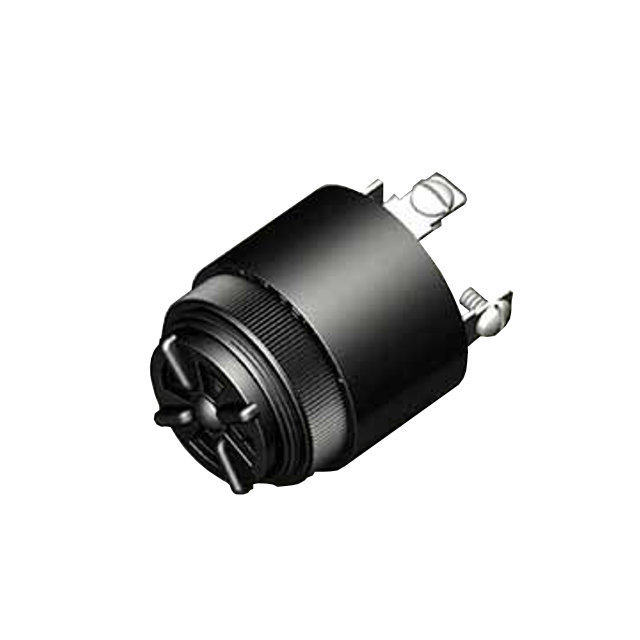

BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB-V09-530-S(M)D
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MB-V09-530-S(M)D | MB-V09-530 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 20 mA | 20 mA |
| Current - Supply [Min] | 2 mA | 2 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.9 kHz | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 1.48 " | 1.48 " |
| Height - Seated (Max) [Max] [z] | 37.59 mm | 37.59 mm |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Pulse, Single Tone, Medium | Pulse, Single Tone, Medium, Fast, Pulse, Medium, Slow |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.41 in | 1.409 - 1.41 in |
| Size / Dimension [diameter] | 35.81 mm | 35.8 - 35.81 mm |
| Sound Pressure Level (SPL) | 95 dB | 95 dB |
| Technology | Piezo | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm), Wire Leads |
| Voltage Range [Max] | 30 V | 30 V |
| Voltage Range [Min] | 5 | 5 |
MB-V09-530 Series
BUZZER PIEZO 35.81MM PNL MNT
| Part | Port Location | Ingress Protection | Frequency | Sound Pressure Level (SPL) | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Range [Max] | Voltage Range [Min] | Current - Supply [Min] | Current - Supply [Max] | Technology | Approval Agency | Termination | Input Type | Driver Circuitry | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc MB-V09-530-S(M)D | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Medium, Pulse, Single Tone |
Floyd Bell Inc MB-V09-530-S(F) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse |
Floyd Bell Inc MB-V09-530-Q(U)D | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse, Single Tone |
Floyd Bell Inc MB-V09-530-W(U) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.409 in | 35.8 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Wire Leads | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse |
Floyd Bell Inc MB-V09-530-Q(M) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Pulse, Medium |
Floyd Bell Inc MB-V09-530-Q(U) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse |
Floyd Bell Inc MB-V09-530-S(F)D | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse, Single Tone |
Floyd Bell Inc MB-V09-530-Q(S) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Pulse, Slow |
Floyd Bell Inc MB-V09-530-W(F) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.41 in | 35.81 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Wire Leads | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse |
Floyd Bell Inc MB-V09-530-S(U) | Top | IP68 - Dust Tight, Waterproof | 2.9 kHz | 95 dB | 1.409 in | 35.8 mm | 30 V | 5 | 2 mA | 20 mA | Piezo | UL, UR | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | DC | Indicator, Internally Driven | 1.48 " | 37.59 mm | Fast, Pulse |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.40 | |
Description
General part information
MB-V09-530 Series
Buzzers Indicator, Internally Driven Piezo 2 ~ 20mA 2.9kHz 95dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
