TE4-1A-DC-1-RL

Active

Switch Components

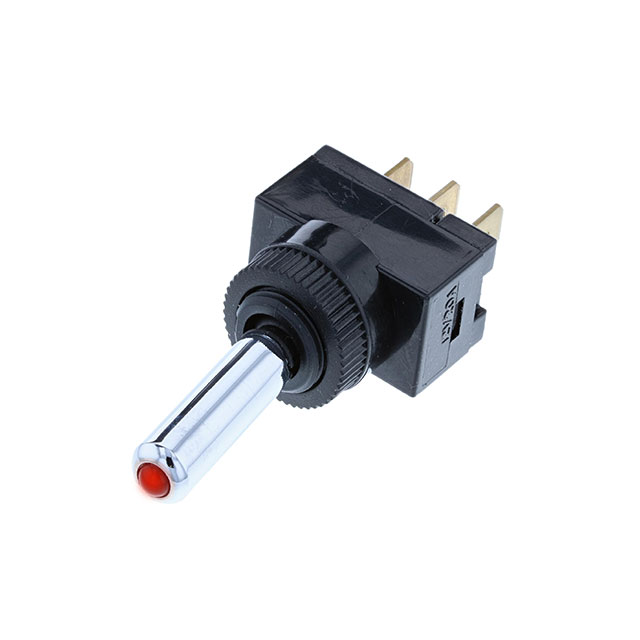

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE4-1A-DC-1-RL	TE4-1A Series

Actuator Length [x]	25 mm	25 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	1 x 1	1 x 1
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	LED, Green, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Material	Voltage Rating - DC	Termination Style	Switch Function	Actuator Length [x]	Bushing Thread	Bushing Thread	Illumination	Actuator Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Circuit	Illumination Type, Color	Electrical Life
Switch Components TE4-1A-DC-1-GL	-25 °C	85 °C	12.2 mm	Brass, Chrome Plated	12 V	Quick Connect - 0.250" (6.3mm)	On-Off	25 mm	M12	1 x 1	Illuminated	Standard Round	12 VDC	20 A	SPST	Green, LED	6000 Cycles
Switch Components TE4-1A-DC-1-RL	-25 °C	85 °C	12.2 mm	Brass, Chrome Plated	12 V	Quick Connect - 0.250" (6.3mm)	On-Off	25 mm	M12	1 x 1	Illuminated	Standard Round	12 VDC	20 A	SPST	LED, Red	6000 Cycles
