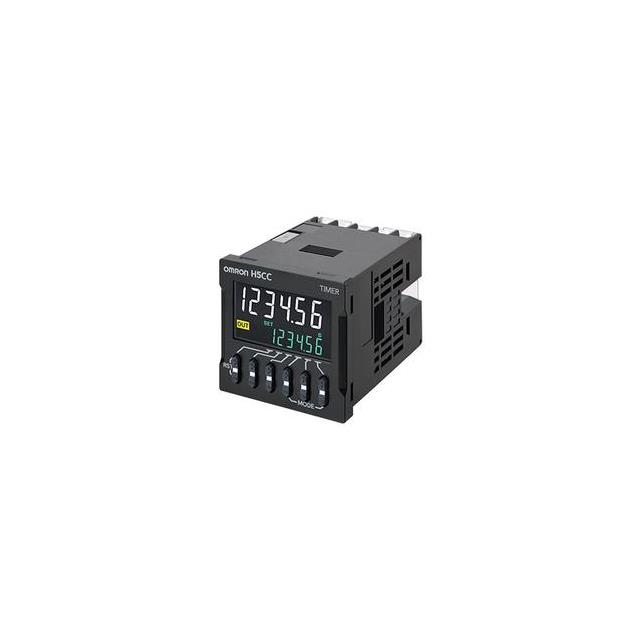

H5CC-L8EF
ActiveOmron Automation and Safety
TIMER,8-PIN,CONTACT,100-240AC
H5CC-L8EF
ActiveOmron Automation and Safety
TIMER,8-PIN,CONTACT,100-240AC
Description
General part information
H5CC-L8EF
Time Counter (Hour Meter) 24 ~ 240VAC/DC DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | H5CC-L8EF |
|---|---|
| Display Characters - Height | 0.394 in |
| Display Characters - Height (Option 2) | 0.236 in |
| Display Type | LCD - Dual Color Characters, Backlight |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Input Type | No Voltage |
| Maximum Number of Characters Per Row | 6 characters |
| Minimum Number of Characters Per Row | 6 characters |
| Mounting Type | DIN Rail |
| Operating Mode | Down, Up |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Panel Cutout Length | 45.6 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 45.6 mm |
| Pin Count | 8 |
| Reset | Front Panel, External, Programmable |
| Termination Style | Plug In |
| Time Format | Multiple |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
