B65839A0000R030

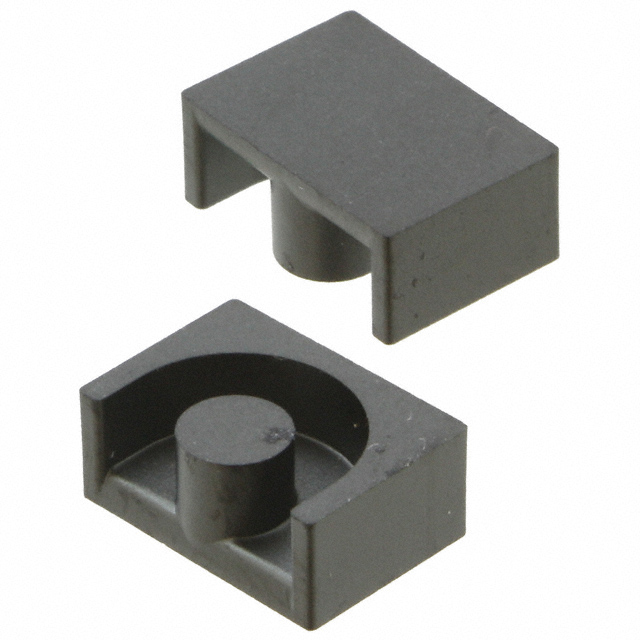

Uncoated N30 Ferrite Core EP Type 0.370" (9.40mm) Length 0.256" (6.50mm) Width Diameter 0.148" (3.75mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65839A0000R030 |
|---|---|
| Core Factor (ΣI/A) | 1.52 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1.52 mm⁻¹ |
| Core Type | EP |
| Effective Area (Ae) | 10.3 mm² |
| Effective Length (le) | 15.7 mm |
| Effective Magnetic Volume (Ve) | 162 mm³ |
| Effective Permeability (µe) | 2430 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.148 in |
| Inductance Factor (Al) | 2 µH |
| Initial Permeability (µi) | 4300 |
| Length | 0.37 in |
| Material | N30 |
| Minimum Core Cross Section (Amin) (mm²) | 8.5 mm² |
| Package Name | EP 7 |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 30 % |
| Width | 0.256 in |
