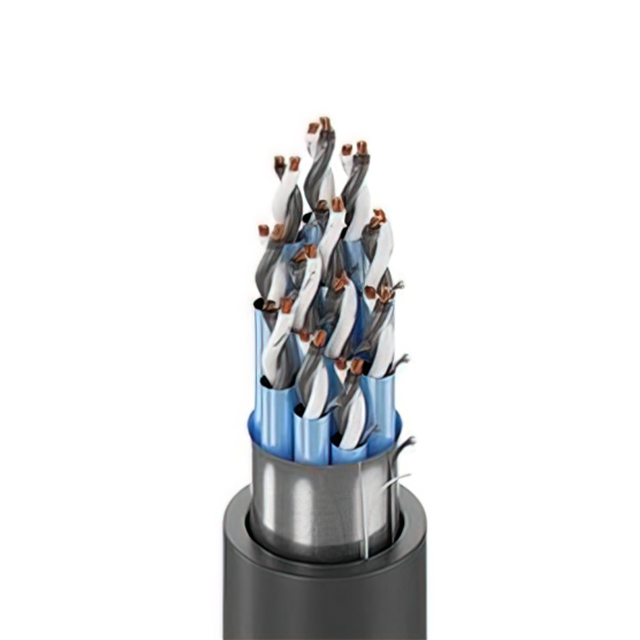

1043A 0102500

Active

Belden Inc.

MULTI-PAIR 32COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 32COND 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1043A 0102500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	1.013 in
Jacket (Insulation) Diameter [diameter]	25.73 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length	2500 ft
Length	762 m
Number of Conductors	32
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

MULTI-PAIR 32COND 16AWG

Part	Shield Coverage	Shield Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Shield Material	Features	Length	Length	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 1043A 0102500	100 %	Foil	Copper, Bare	0.084 in	2.134 mm	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	Multi-Pair	Aluminum	Drain Wire, Rip Cord	2500 ft	762 m	Poly-Vinyl Chloride (PVC)	Black	32	16 AWG	7	24	1.013 in	25.73 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 17.66

General part information

32 (16 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 2500' (762.0m)
