2256/6 SL005

Active

ALPHA WIRE

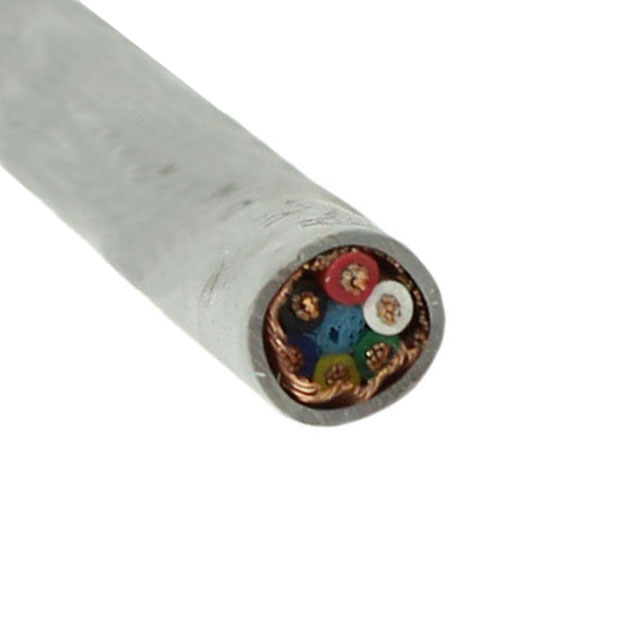

CABLE 6COND 20AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 20AWG SLATE SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2256/6 SL005	2256/6 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	10	10
Jacket (Insulation) Diameter [diameter]	0.264 in	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 '
Number of Conductors	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Spiral	Spiral
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

MULTICONDUCTOR CABLE, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.56 MM², 500 FT, 152.4 M

Part	Conductor Insulation	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Shield Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Coverage	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Material	Shield Material	Length	Length
ALPHA WIRE 2256/6 SL002	Poly-Vinyl Chloride (PVC)	Communication, Control	30 AWG	10	0.264 in	6.71 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	500 '	152.4 m	Spiral	6	0.02 in	0.508 mm	Slate	95 %	300 V	-20 C	80 C	20 AWG	Copper, Tinned	Copper, Bare
ALPHA WIRE 2256/6 SL005	Poly-Vinyl Chloride (PVC)	Communication, Control	30 AWG	10	0.264 in	6.71 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 ft	30.5 m	Spiral	6	0.02 in	0.508 mm	Slate	95 %	300 V	-20 C	80 C	20 AWG	Copper, Tinned	Copper, Bare
ALPHA WIRE 2256/6 SL001	Poly-Vinyl Chloride (PVC)	Communication, Control	30 AWG	10	0.264 in	6.71 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor			Spiral	6	0.02 in	0.508 mm	Slate	95 %	300 V	-20 C	80 C	20 AWG	Copper, Tinned	Copper, Bare	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 13.16

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG Spiral 100.0' (30.5m)

Technical documentation and resources
