0707905
ObsoletePhoenix Contact
TERM BLK HEADER 4POS GREEN
0707905
ObsoletePhoenix Contact
TERM BLK HEADER 4POS GREEN
Description
General part information
0707905

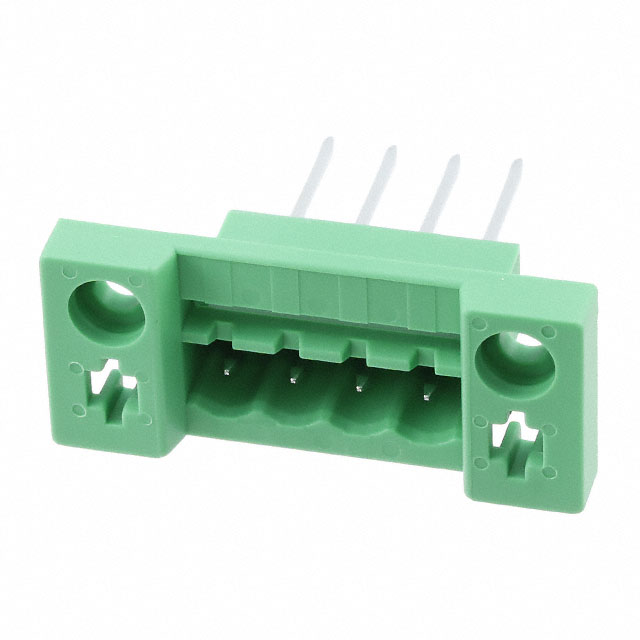

4 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 0707905 |
|---|---|
| Color | Green |
| Current - UL | 10 A |
| Features | Lock Opening |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Front Flange |
| Panel Thickness (Max) | 0.157 in |
| Panel Thickness (Min) | 0.02 in |
| Pitch | 5.08 mm |
| Positions Per Level | 4 |
| Rear Panel Wire Connection | Wire Wrap Terminals |
| Voltage - UL | 300 V |
| Width | 1.6 in |
