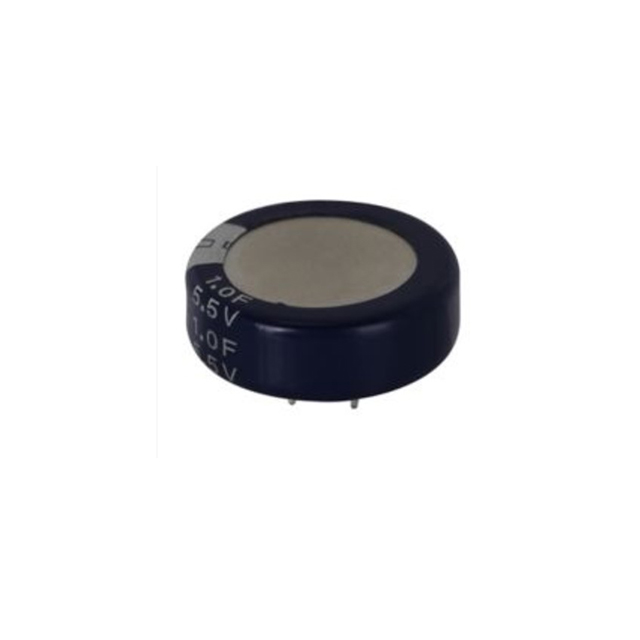

KR-5R5C105H-R
ActiveEaton - Electronics Division
CAP 1F -20% +80% 5.5V T/H
KR-5R5C105H-R
ActiveEaton - Electronics Division
CAP 1F -20% +80% 5.5V T/H
Description
General part information
KR-5R5C105H-R
1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | KR-5R5C105H-R |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Height - Seated (Max) | 0.295 in, 0.28 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.846 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
