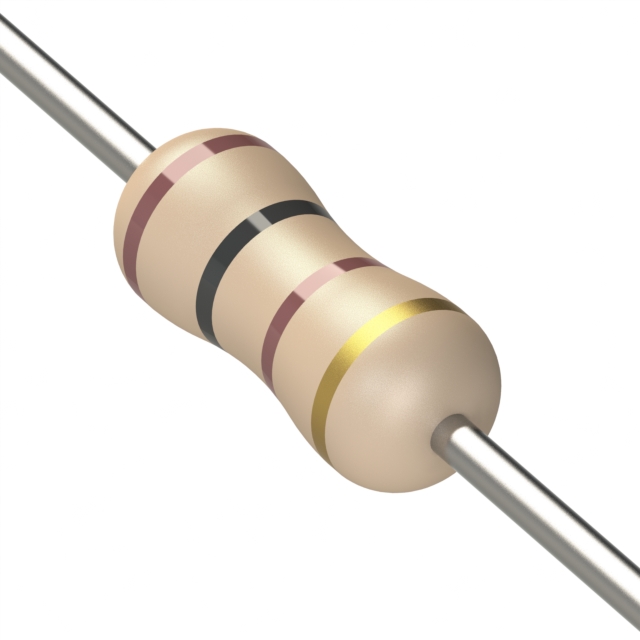

CFS1/2CT52R101J
ActiveKOA Speer Electronics, Inc.
RES CARBON FILM 100 OHM 5% 0.5W(1/2W) -450PPM/°C TO 350PPM/°C CONFORMAL COATED AXL T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFS1/2CT52R101J
ActiveKOA Speer Electronics, Inc.
RES CARBON FILM 100 OHM 5% 0.5W(1/2W) -450PPM/°C TO 350PPM/°C CONFORMAL COATED AXL T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFS1/2CT52R101J |
|---|---|
| Composition | Carbon Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 100 Ohms |
| Size / Dimension [diameter] | 2.85 mm |
| Size / Dimension [diameter] | 0.112 in |
| Size / Dimension [x] | 6.3 mm |
| Size / Dimension [x] | 0.248 in |
| Supplier Device Package | Axial |
| Temperature Coefficient [Max] | 350 ppm/°C |
| Temperature Coefficient [Min] | -450 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 4000 | $ 0.04 | ||
| 8000 | $ 0.04 | |||
| 12000 | $ 0.04 | |||
| 20000 | $ 0.04 | |||
Description
General part information
CFS1/2CT52R101J
100 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
