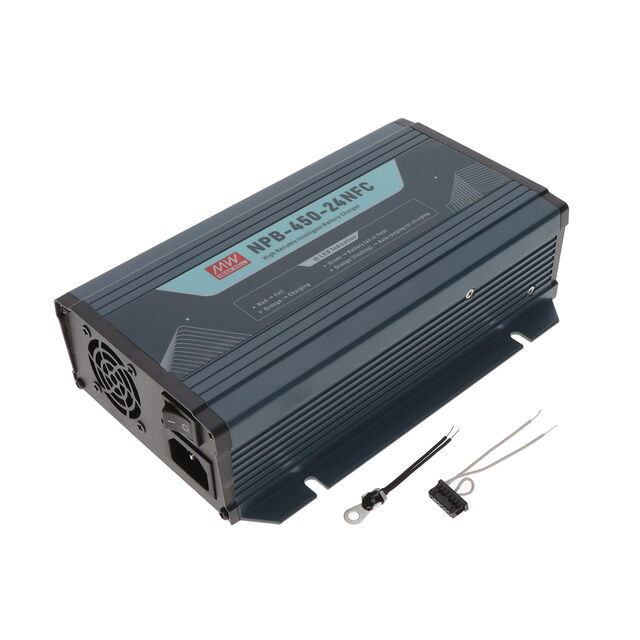

NPB-450-24NFC
ActiveMEAN WELL USA Inc.
O/P +24V13.5A
NPB-450-24NFC
ActiveMEAN WELL USA Inc.
O/P +24V13.5A
Description
General part information
NPB-450-24NFC
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NPB-450-24NFC |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | cURus, UKCA, EAC, CE, CB |
| Current - Output 1 | 13.5 A |
| Efficiency | 93 % |
| Features | Remote On/Off, PFC, DC Input Capable, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 324 W |
| Size / Dimension Height | 2.17 in |
| Size / Dimension Length | 8.07 in |
| Size / Dimension Width | 5.31 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
