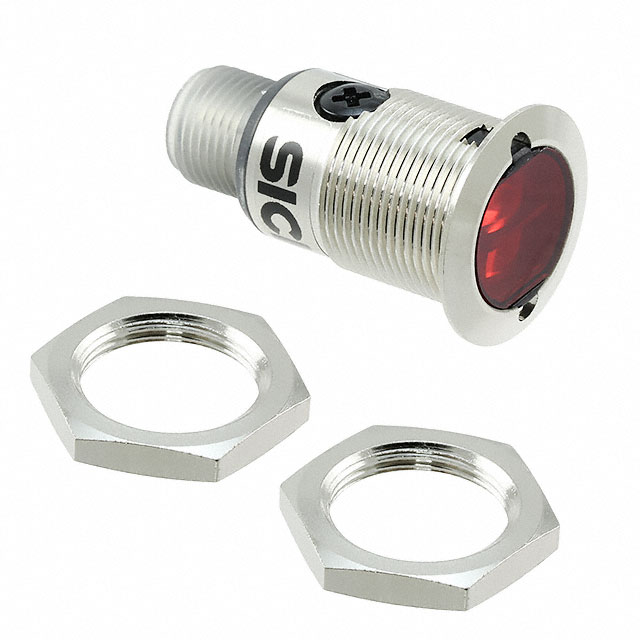

Specification	1059487

Adjustment Type	Adjustable, Potentiometer
Connection Method	3POS, M12, Connector
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Output Configuration	Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON
Response Time	1 ms
Sensing Distance Maximum	15.748 "
Sensing Distance Minimum	0.394 "
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

GRTE18S Series

Part	Sensing Method	Response Time	Ingress Protection	Light Source Wavelength (Red)	Light Source	Output Configuration	Connection Method	Operating Temperature (Min)	Operating Temperature (Max)	Sensing Distance Maximum	Sensing Distance Minimum	Adjustment Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Cable Length
SICK, Inc. 1058200	Proximity	1 ms	IP67	650 nm	Red	PNP	Connector M12	-25 °C	55 °C	21.654 "	0.197 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1069584	Proximity	1 ms	IP67	650 nm	Red	NPN	Cable	-25 °C	55 °C	4.528 "	0.118 "	Adjustable Potentiometer	10 VDC	30 VDC	78.74 in
SICK, Inc. 1059488	Proximity	1 ms	IP67	650 nm	Red	PNP	Connector M12	-25 °C	55 °C	21.654 "	0.197 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. GRTE18S-N2317	Proximity	1 ms	IP67	650 nm	Red	NPN	Connector M12	-25 °C	55 °C	4.528 "	0.118 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1069558	Proximity	1 ms	IP67	650 nm	Red	PNP	Connector M12	-25 °C	55 °C	39.37 "	0.197 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1069582	Proximity	1 ms	IP67	650 nm	Red	PNP	Connector M12	-25 °C	55 °C	4.528 "	0.118 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1059409	Proximity	1 ms	IP67	650 nm	Red	NPN	Connector M12	-25 °C	55 °C	4.528 "	0.118 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. GRTE18S-E236Z	Proximity	1 ms	IP67	650 nm	Red	NPN	Connector M12	-25 °C	55 °C	39.37 "	0.197 "	Adjustable Potentiometer	10 VDC	30 VDC
SICK, Inc. 1069494	Proximity	1 ms	IP67	650 nm	Red	NPN	Cable	-25 °C	55 °C	39.37 "	0.197 "	Adjustable Potentiometer	10 VDC	30 VDC	78.74 in
SICK, Inc. GRTE18S-N1317	Proximity	1 ms	IP67	650 nm	Red	NPN	Cable	-25 °C	55 °C	4.528 "	0.118 "	Adjustable Potentiometer	10 VDC	30 VDC	78.74 in
