1-770970-1

Active

TE Connectivity AMP Connectors

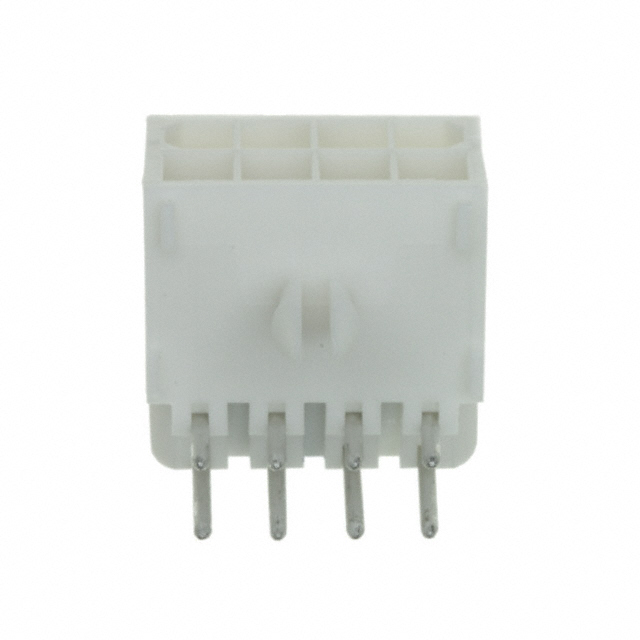

CONN HEADER R/A 8POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-770970-1

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 8POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-770970-1	770970 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

770970 Series

CONN HEADER R/A 8POS 4.14MM

Part	Material Flammability Rating	Number of Rows	Applications	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Color	Contact Type	Voltage Rating	Insulation Material	Termination	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Positions Loaded	Connector Type	Current Rating (Amps)
TE Connectivity AMP Connectors 770970-1	UL94 V-0	2	General Purpose	Brass	85 °C	-20 C	0.145 in	3.68 mm	8	Tin-Lead	Through Hole, Right Angle	150 Áin	3.81 Ám	Locking Ramp	Tin-Lead	4.14 mm	0.163 in	Board to Cable/Wire	White	Male Pin	600 VAC	Nylon, Polyamide (PA)	Solder	9.8 mm	0.386 in	Circular	4.14 mm	0.163 in	150 Áin	3.81 Ám	Shrouded - 4 Wall	All	Header	Varies by Wire Gauge
TE Connectivity AMP Connectors 770970-2	UL94 V-0	2	General Purpose	Brass	105 ░C	-20 C	0.145 in	3.68 mm	8	Tin-Lead	Through Hole, Right Angle	150 Áin	3.81 Ám	Locking Ramp	Gold	4.14 mm	0.163 in	Board to Cable/Wire	White	Male Pin	600 VAC	Nylon, Polyamide (PA)	Solder	9.8 mm	0.386 in	Circular	4.14 mm	0.163 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	All	Header	Varies by Wire Gauge
TE Connectivity AMP Connectors 1-770970-1	UL94 V-0	2	General Purpose	Brass	105 ░C	-20 C	0.145 in	3.68 mm	8	Tin	Through Hole, Right Angle	150 Áin	3.81 Ám	Locking Ramp	Gold	4.14 mm	0.163 in	Board to Cable/Wire	White	Male Pin	600 VAC	Nylon, Polyamide (PA)	Solder	9.8 mm	0.386 in	Circular	4.14 mm	0.163 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	All	Header	Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.23
		10	$ 6.30
		200	$ 5.61
		1000	$ 4.68

Description

General part information

770970 Series

Connector Header Through Hole, Right Angle 8 position 0.163" (4.14mm)
