TEL0159

Active

DFRobot

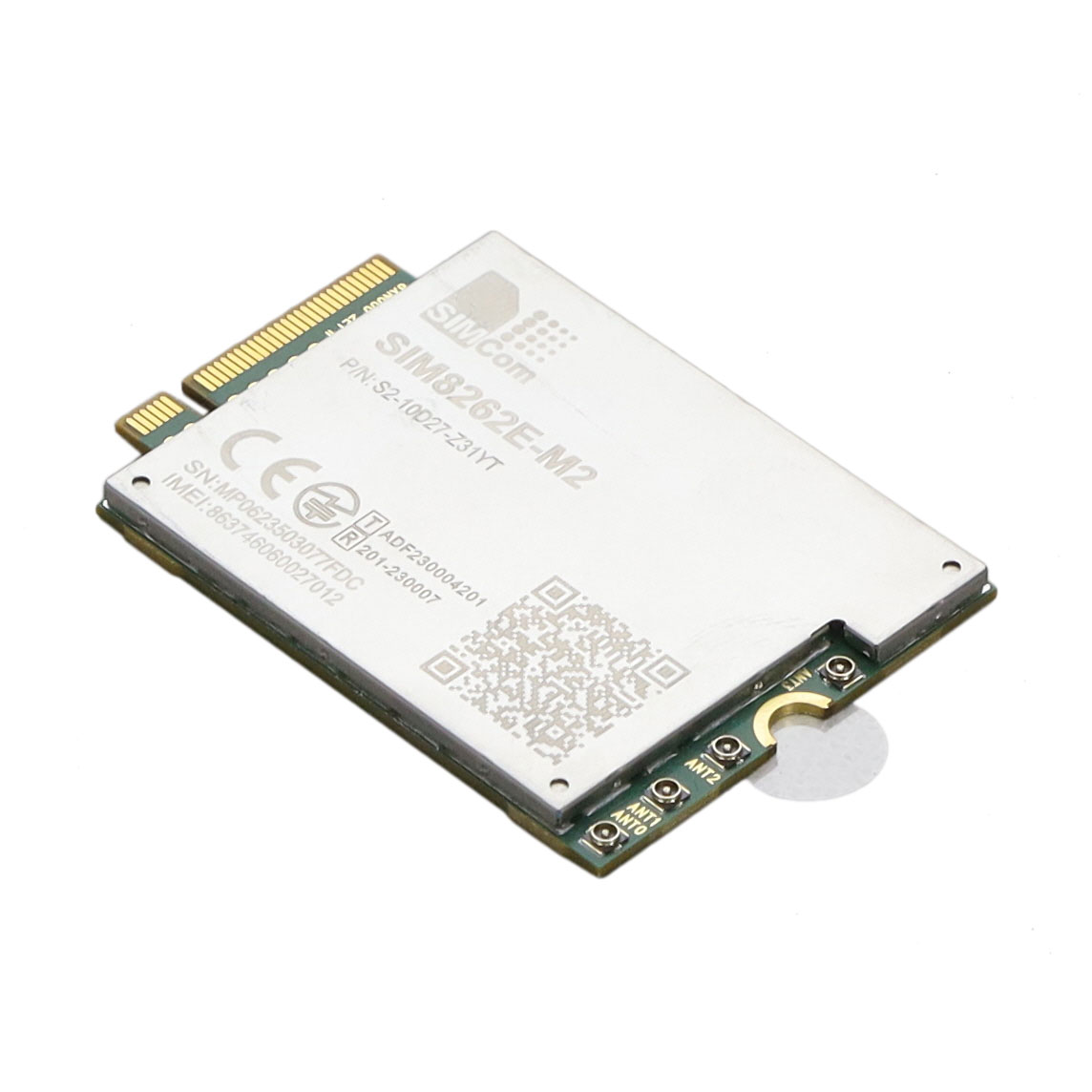

RF TXRX MOD CEL CHIP+IPEX4 CARD

Search across all available documentation for this part.

Active

DFRobot

RF TXRX MOD CEL CHIP+IPEX4 CARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 248.75

General part information

Cellular, Navigation Galileo, GLONASS, GNSS, GPS, LTE, WCDMA Transceiver Module Integrated, Chip + IPEX4 Card Edge

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TEL0159	TEL01 Series

Antenna Type	Integrated, Chip + IPEX4	Integrated, Chip + IPEX4, Integrated, Chip + IPEX
Applications	-	GPS, Wireless
Data Rate	3 Gbps	3 - 150 Gbps
Data Rate (Max)	-	115.2 kbps
Frequency	-	1.561 - 1.602 GHz
Frequency	-	2.412 - 850 GHz
Frequency	-	1.9 - 5.825 GHz
Function	-	Receiver, Network Card
Interface	-	USB
Memory Size	-	4 GB
Modulation or Protocol	-	GPS, 802.11 b/g/-c
Mounting Type	Card Edge	Card Edge
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	Galileo, LTE, GLONASS, GPS, GNSS, WCDMA	Galileo, LTE, GLONASS, GPS, GNSS, WCDMA, GSM
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-	-162 dBm
Serial Interfaces	USB, I2C, I2S, UART	USB, I2C, I2S, UART
Utilized IC / Part	SIM8262E-M2	SIM8262E-M2, SIM7600G-H-M2, SIM8262A-M2
Voltage - Supply [Max]	4.4 V	4.2 - 5.25 V
Voltage - Supply [Min]	3 V	3 - 4.75 V

USB GPS RECEIVER WITH 2M EXTENSION CABLE (COMPATIBLE WITH RASPBERRY PI/ LATTEPANDA/ JETSON NANO)

Part	Sensitivity	Modulation or Protocol	Interface	Data Rate (Max) [Max]	Applications	Frequency	Function	Frequency [Min]	Frequency [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Utilized IC / Part	RF Family/Standard	Antenna Type	Protocol	Serial Interfaces	Package / Case	Data Rate	Memory Size
DFRobot TEL0138	-162 dBm	GPS	USB	115.2 kbps	GPS	1.561 GHz, 1.575 GHz, 1.602 GHz	Receiver
DFRobot TEL0145		802.11 b/g/-c	USB		Wireless		Network Card	2.412 GHz, 5.15 GHz	2.4835 GHz, 5.825 GHz	4.75 V	5.25 V
DFRobot TEL0159										3 V	4.4 V	85 °C	-40 °C	Card Edge	SIM8262E-M2	Cellular, Navigation	Integrated, Chip + IPEX4	Galileo, GLONASS, GNSS, GPS, LTE, WCDMA	I2C, I2S, UART, USB	Module	3 Gbps
DFRobot TEL0158								850 MHz	1.9 GHz	3 V	4.2 V	85 °C	-40 °C	Card Edge	SIM7600G-H-M2	Cellular, Navigation	Integrated, Chip + IPEX	Galileo, GLONASS, GNSS, GPS, LTE, WCDMA	UART, USB	Module	150 Mbps
DFRobot TEL0160										3 V	4.4 V	85 °C	-40 °C	Card Edge	SIM8262A-M2	Cellular, Navigation	Integrated, Chip + IPEX	GNSS, GPS, GSM, LTE, WCDMA	I2C, I2S, UART, USB	Module	3 Gbps	4 GB
