LSA29-S2S2-S24
ActiveConductRF

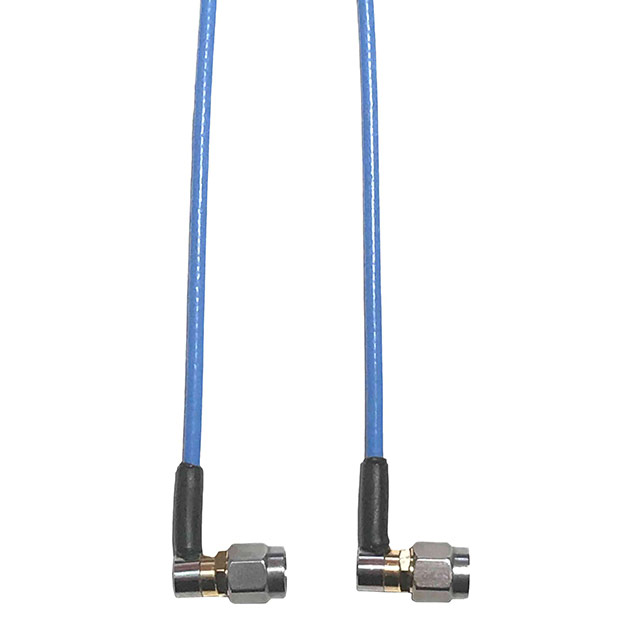

CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSA29-S2S2-S24
ActiveConductRF
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LSA29-S2S2-S24 | LSA29 Series |
|---|---|---|
| 1st Connector | SMA Plug, Right Angle | SMA Plug, Right Angle, N-Type Jack, N-Type Plug, SMA Jack |
| 1st Connector Mounting Feature | - | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Panel Mount |
| 1st Contact Gender | Male | Male, Female |
| 2nd Connector | SMA Plug, Right Angle | SMA Plug, Right Angle, SMA Plug, N-Type Plug, N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male |
| Cable Type | 3.58mm OD Coaxial Cable | 3.58mm OD Coaxial Cable |
| Color | Blue | Blue |
| Connector Impedance | 50 Ohms | 50 Ohms |
| Features | Shielded | Shielded |
| Frequency - Max [Max] | 18 GHz | 18 GHz |
| Length | 24 " | 5 - 48 " |
| Length | 609.6 mm | 1.5 - 1200 mm |
| Length | - | 457.2 mm |
| Length | - | 406.4 - 457.2 mm |
| Length | - | 4 - 5 ft |
| Length | - | 16 in |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMA to SMA | SMA to SMA, N-Type to N-Type, SMA to N-Type |
LSA29 Series
CBL ASSY SMA PLUG TO PLUG 24"
| Part | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | 1st Connector Mounting Type | Connector Impedance | Color | 2nd Connector Mounting Type | 2nd Contact Gender | Style | Features | 1st Connector | Frequency - Max [Max] | 1st Contact Gender | Cable Type | 2nd Connector | Overall Impedance | 1st Connector Mounting Feature | Length [x] | Length [x] | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF LSA29-S2S2-S24 | 24 " | 609.6 mm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | Right Angle, SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug, Right Angle | 50 Ohms | |||||
ConductRF LSA29-S1S1-S36 | 36 in | 91.44 cm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug | 50 Ohms | |||||
ConductRF LSA29-S1S1-S24 | 24 " | 609.6 mm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug | 50 Ohms | |||||
ConductRF LSA29-N1N3-S18 | -55 °C | 125 °C | Panel Mount | 50 Ohms | Blue | Free Hanging (In-Line) | Male | N-Type to N-Type | Shielded | N-Type Jack | 18 GHz | Female | 3.58mm OD Coaxial Cable | N-Type Plug | 50 Ohms | Bulkhead - Front Side Nut | 457.2 mm | 457.2 mm | ||||
ConductRF LSA29-S2S2-S12 | 12 " | 304.8 mm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | Right Angle, SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug, Right Angle | 50 Ohms | |||||
ConductRF LSA29-N1S1-S24 | 24 " | 609.6 mm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to N-Type | Shielded | SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | N-Type Plug | 50 Ohms | |||||
ConductRF LSA29-S1S2-S24 | 24 " | 609.6 mm | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug, Right Angle | 50 Ohms | |||||
ConductRF LSA29-S1S1-S18 | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | SMA to SMA | Shielded | SMA Plug | 18 GHz | Male | 3.58mm OD Coaxial Cable | SMA Plug | 50 Ohms | 457.2 mm | 457.2 mm | |||||
ConductRF LSA29-N1N1-S60 | 5 ' | 1.5 m | -55 °C | 125 °C | Free Hanging (In-Line) | 50 Ohms | Blue | Free Hanging (In-Line) | Male | N-Type to N-Type | Shielded | 18 GHz | Male | 3.58mm OD Coaxial Cable | N-Type Plug | 50 Ohms | 5 ft | |||||
ConductRF LSA29-N1N3-S12 | 12 " | 304.8 mm | -55 °C | 125 °C | Panel Mount | 50 Ohms | Blue | Free Hanging (In-Line) | Male | N-Type to N-Type | Shielded | N-Type Jack | 18 GHz | Female | 3.58mm OD Coaxial Cable | N-Type Plug | 50 Ohms | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.10 | |
| 5 | $ 58.44 | |||
| 10 | $ 55.20 | |||
| 25 | $ 49.68 | |||
| 50 | $ 45.16 | |||
| 100 | $ 43.20 | |||
| 250 | $ 41.40 | |||
| 500 | $ 39.74 | |||
| 1000 | $ 38.21 | |||
Description
General part information
LSA29 Series
Cable Assembly Coaxial SMA to SMA 3.58mm OD Coaxial Cable 24.00" (609.60mm)
