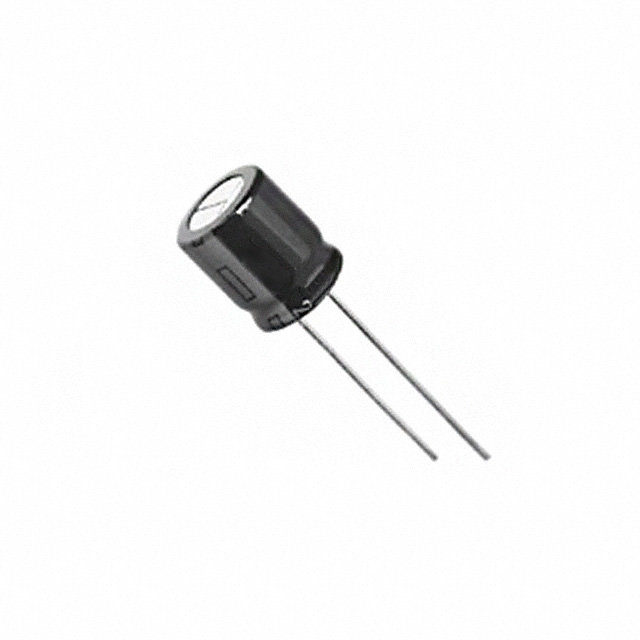

Specification	EEU-TP1V271L

Applications	Automotive
Capacitance	270 µF
Height - Seated (Max)	0.866 in
Lead Spacing	0.138 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	760 mA, 689 mA
Size / Dimension Diameter	0.315 in
Tolerance	20 %
Voltage - Rated	35 V

EEU-TP Series

Part	Capacitance	Lead Spacing	Ripple Current	Size / Dimension Diameter	Lifetime	Mounting Type	Polarization	Tolerance	Applications	Height - Seated (Max)	Ratings	Package / Case	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)
Panasonic Electronic Components EEU-TP1E222S	2200 ĄF	0.295 in	2.16 A 2.25 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	0.866 in	AEC-Q200	Can Radial	25 VAC	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V471B	470 µF	0.197 in	1.395 A 1.49 A	0.492 in	4000 Hrs	Through Hole	Polar	20 %	Automotive	0.866 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V202SB	2000 µF	0.295 in	2.368 A 2.47 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	1.063 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V272	2700 µF	0.295 in	2.784 A 2.9 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	1.319 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1E272S	2700 µF	0.295 in	2.16 A 2.25 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	0.866 in	AEC-Q200	Can Radial	25 VAC	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1E221B	220 µF	0.197 in	377 mA 500 mA	0.394 in	3000 Hrs	Through Hole	Polar	20 %	Automotive	0.551 in	AEC-Q200	Can Radial	25 VAC	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1E472	4700 µF	0.295 in	2.784 A 2.9 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	1.319 in	AEC-Q200	Can Radial	25 VAC	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V271	270 µF	0.197 in	715 mA 945 mA	0.394 in	3000 Hrs	Through Hole	Polar	20 %	Automotive	0.689 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V152B	1500 µF	0.295 in	2.208 A 2.3 A	0.63 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	1.063 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
Panasonic Electronic Components EEU-TP1V182SB	1800 µF	0.295 in	2.368 A 2.47 A	0.709 in	5000 Hrs	Through Hole	Polar	20 %	Automotive	1.063 in	AEC-Q200	Can Radial	35 V	135 °C	-40 °C
