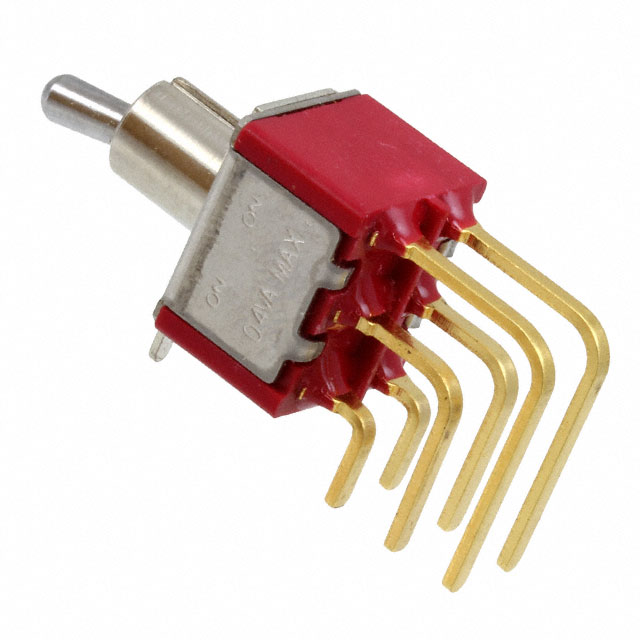

100DP1T2B4M7RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP1T2B4M7RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP1T2B4M7RE	100DP1 Series

Actuator Length [x]	5.08 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round, Locking Lever
Bushing Thread	Unthreaded	1/4-40, Unthreaded, 15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 in
Switch Function	On-On	On-On
Termination Style	PC Pin	Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm), Wire Wrap
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100DP1 Series

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Electrical Life	Switch Function	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Length [x]	Illumination	Circuit	Mounting Type
E-Switch 100DP1T6B11M1REH	20 V	1/4-40	20 V	0.25 in	Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	Solder Lug	Flat Anti-Rotation	-30 ░C	85 °C	Brass, Chrome Plated	12.3 mm	Non-Illuminated	DPDT
E-Switch 100DP1T2B4M7QE	28 V	Unthreaded	120 V		Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	5.08 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T6B11M1QEH	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	Solder Lug	Flat Anti-Rotation	-30 ░C	85 °C	Brass, Chrome Plated	12.3 mm	Non-Illuminated	DPDT
E-Switch 100DP1T1B2M6RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Through Hole, Right Angle
E-Switch 100DP1T1B2M7RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T1B1M6QE	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Panel Mount, Right Angle
E-Switch 100DP1T2B2M2RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	5.08 mm	Non-Illuminated	DPDT	Through Hole
E-Switch 100DP1T7B13M1QE	28 V	15/32-32	120 V	11.91 mm	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	Solder Lug	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	12.98 mm	Non-Illuminated	DPDT
E-Switch 100DP1T1B3M7QE	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T9B1M7REH	20 V	1/4-40	20 V	0.25 in	Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	21.34 mm	Non-Illuminated	DPDT	Panel Mount, Right Angle, Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 3.91

Description

General part information

100DP1 Series

Toggle Switch DPDT Through Hole, Right Angle, Vertical
