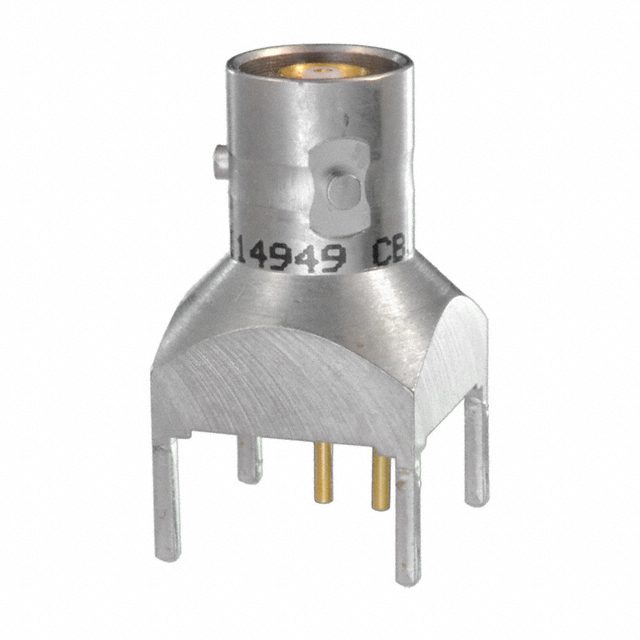

CBJ157

Active

Cinch Connectivity Solutions Trompeter

CONN TRS JACK STR PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRS JACK STR PCB

Technical Specifications

Parameters and characteristics for this part

CONN TRS JACK STR PCB

Part	Mounting Type	Frequency - Max [Max]	Impedance	Center Contact Material	Body Finish	Number of Ports	Connector Type	Fastening Type	Connector Style	Contact Termination	Housing Color	Body Material	Features	Mating Cycles	Voltage Rating	Center Contact Plating	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Trompeter CBJ157	Through Hole	500 MHz	Non-Constant	Beryllium Copper	Nickel	1	Female Socket, Jack	Bayonet Lock	Triaxial, TRS	Solder	Silver	Brass	Three Lug	500	400 V	Gold	Solder	-65 ░C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRS, Triaxial Connector Jack, Female Socket Non-Constant Through Hole Solder

Technical documentation and resources

No documents available
