3006
ActiveAdafruit Industries LLC

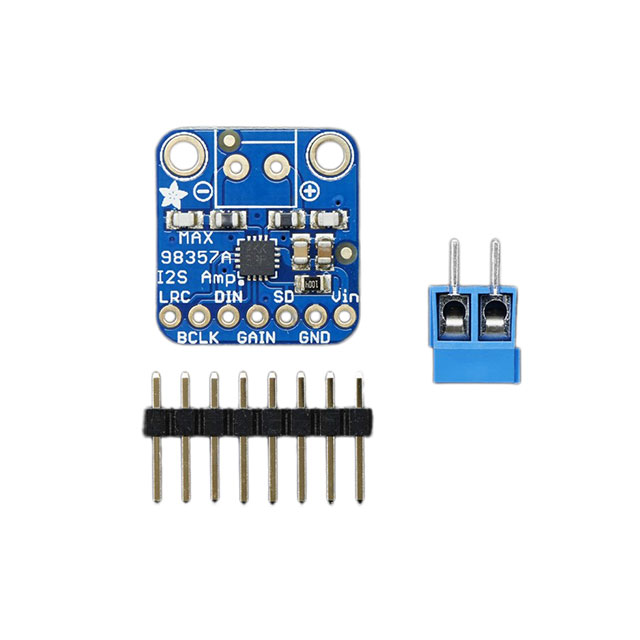

MAX98357A I2S AMP BREAKOUT BOARD
3006
ActiveAdafruit Industries LLC
MAX98357A I2S AMP BREAKOUT BOARD
Description
General part information
3006
MAX98357A - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 3006 |
|---|---|
| Amplifier Type | Class D |
| Board Type | Fully Populated |
| Channels | 1 |
| Contents | Board |
| Load Impedance | 4 Ohm |
| Maximum Output Power (per Channel) | 3.2 W |
| Output Type | 1-Channel (Mono) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX98357A |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.5 V |
