2702040

Active

Phoenix Contact

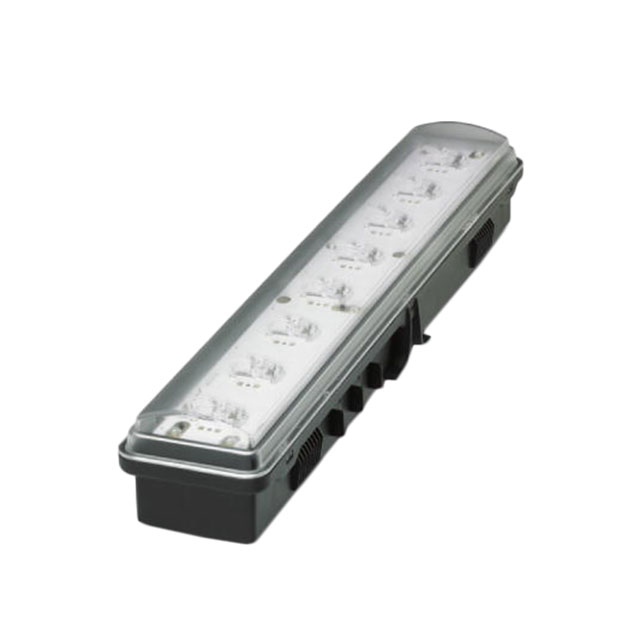

LED MOD NEUT WHT RECT 4300K

Search across all available documentation for this part.

Active

Phoenix Contact

LED MOD NEUT WHT RECT 4300K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2702040	27020 Series

CCT (K)	4300 K	4300 K
Color	Neutral, White	Neutral, White
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	70	70
Function - Lighting	-	Steady
Height [z]	100 mm	100 mm
Ingress Protection	-	IP65 - Dust Tight, Water Resistant
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	1250 lm	1250 lm
Number of Stacks	-	1
Operating Temperature	-	50 °C
Operating Temperature	-	-20 C
Size / Dimension [x]	460 mm	460 mm
Size / Dimension [y]	85 mm	85 mm
Type	LED Module	Optical Element, LED Module
Voltage - Forward (Vf) (Typ)	230 VAC	230 VAC
Voltage - Supply	-	24 VDC
Weight	-	63.05 g
Weight	-	0.139 lb

OPTICAL ELEM MULT COLOR STEADY

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Ingress Protection	Number of Stacks	Function - Lighting	Type	Weight	Weight	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Color	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Height [z]	CCT (K)
Phoenix Contact 2702090	50 °C	-20 C	24 VDC	IP65 - Dust Tight, Water Resistant	1	Steady	Optical Element	63.05 g	0.139 lb
Phoenix Contact 2702040							LED Module			70	1250 lm	85 mm	460 mm	Neutral, White	Flat	Rectangle	230 VAC	100 mm	4300 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Neutral Rectangle
