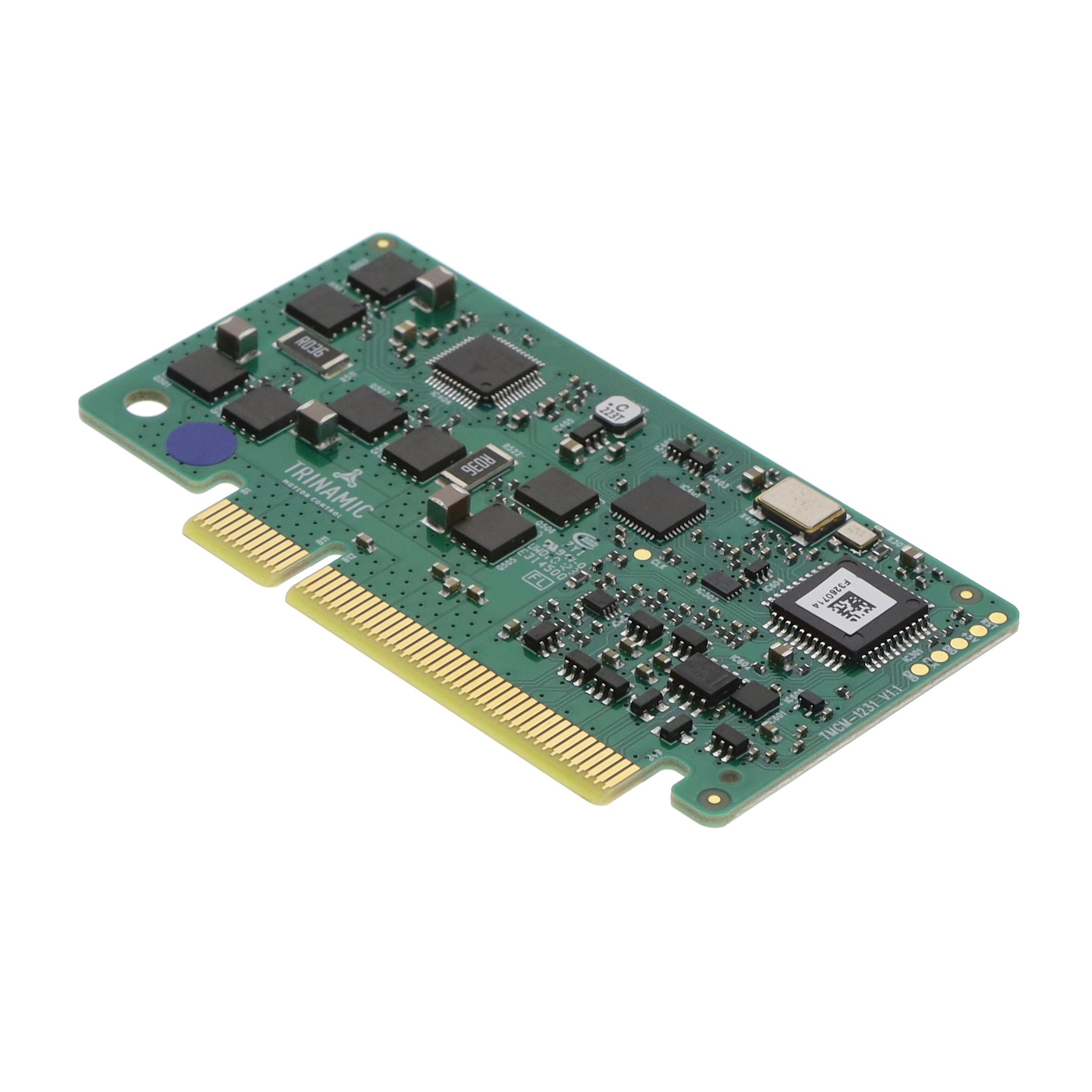

TMCM-1231-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 6.5A 10-52V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1231-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 6.5A 10-52V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1231-TMCL | TMCM-1231 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 6.5 A | 6.5 A |
| Interface | Step / Direction, RS-485 | Step / Direction, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 52 V | 52 V |
| Voltage - Load [Min] | 10 V | 10 V |
| Voltage - Supply | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 188.72 | |
TMCM-1231 Series
STEPPER DRIVER 6.5A 10-52V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Voltage - Supply | Type | Control / Drive Type | Current - Output | Motor Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1231-CANOPEN | -30 ░C | 60 °C | 10 V | 52 V | RS-485, Step / Direction | 5 V | Board | Bipolar, Stepper | 6.5 A | Stepper | Chassis Mount |
Analog Devices Inc./Maxim Integrated TMCM-1231-TMCL | -30 ░C | 60 °C | 10 V | 52 V | RS-485, Step / Direction | 5 V | Board | Bipolar, Stepper | 6.5 A | Stepper | Chassis Mount |
Description
General part information
TMCM-1231 Series
Stepper, Bipolar 5VDC Supply 6.5A 10 ~ 52V Load
Documents
Technical documentation and resources
No documents available
