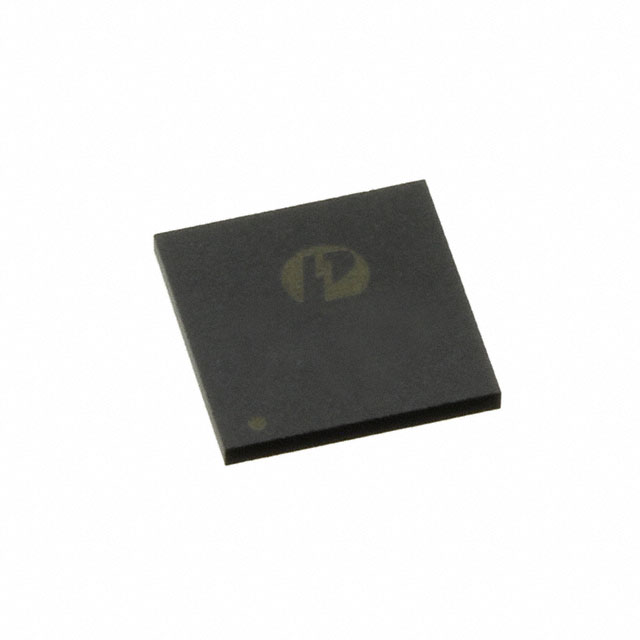

PI7C9X2G303ELAZXE

Obsolete

Diodes Inc

3-PORT, 3-LANE, EXTREMELO PCIE 2.0 PACKET SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI7C9X2G303ELAZXE

Obsolete

Diodes Inc

3-PORT, 3-LANE, EXTREMELO PCIE 2.0 PACKET SWITCH

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI7C9X2G303ELAZXE

Applications	Wireless
Interface	JTAG
Mounting Type	Surface Mount
Package / Case	136-VFQFN Dual Rows, Exposed Pad
Supplier Device Package	136-aQFN (8x8)

PI7C9X2G1616PR Series

16-port, 16-lane, PCIe 2.0 Packet Switch with GreenPacket Technology

Part	Package / Case	Supplier Device Package	Applications	Mounting Type	Interface
Diodes Inc PI7C9X2G1224GPBHSBE	324-BGA	324-HSBGA (19x19)	12-Port/24-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G608ELBZXAE	136-VFQFN Dual Rows Exposed Pad	136-aQFN (10x10)	6-Port/8-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G303ELBZXEX	136-VFQFN Dual Rows Exposed Pad	136-aQFN (8x8)	Wireless	Surface Mount	JTAG
Diodes Inc PI7C9X2G304SVAFDEEX	128-LQFP	128-LQFP (14x14)	3-Port/4-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G312GPBNJE	196-LBGA	196-LBGA (15x15)	3-Port/12-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G304SLBQFDE	128-LQFP	128-LQFP (14x14)	3-Port/4-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G608GPBNJEX	196-LBGA	196-LBGA (15x15)	6-Port/8-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G304SLAFDEX	128-LQFP	128-LQFP (14x14)	3-Port/4-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G608ELAZXAE	136-VFQFN Dual Rows Exposed Pad	136-aQFN (8x8)	6-Port/8-Lane Packet Switch	Surface Mount	PCI Express
Diodes Inc PI7C9X2G404SLBFDEX	128-LQFP	128-LQFP (14x14)	4-Port/4-Lane Packet Switch	Surface Mount	PCI Express

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PI7C9X2G1616PR Series

The PI7C9X2G404EV is a PCI Express® 2.0 4-port/4-lane PCI Express ExtremeLo Packet Switch specifically designed to meet the latest low-power, lead (Pb)-free and green system requirements. The PI7C9X2G404EV is a high-performance, cost-effective solution that can be implemented in systems such as Embedded system, AI, IoT, IPC, Wi-Fi router, Printer, NAS, HBA, STB, PC and other power-sensitive high performance platforms.
