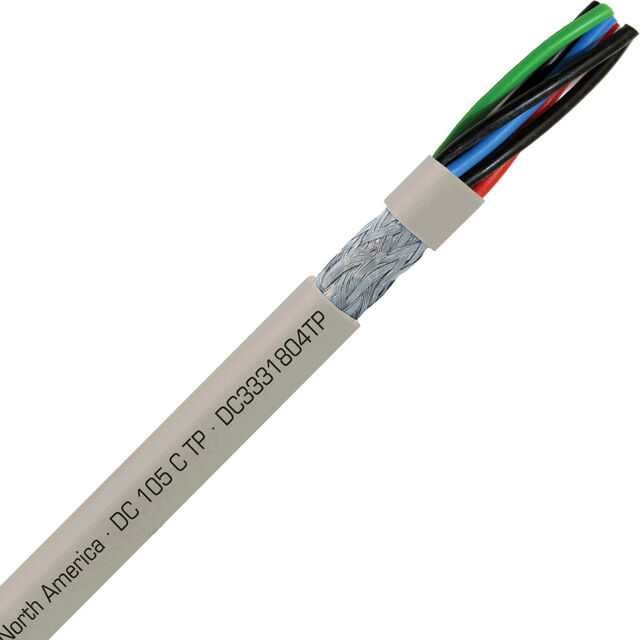

DC3331804TP

Active

SAB North America

MULTI-PAIR 8COND 18AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 8COND 18AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3331804TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	12.09 mm
Jacket (Insulation) Diameter [diameter]	0.476 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	18 AWG

MULTI-PAIR 8COND 18AWG GRY 1=1FT

Part	Jacket (Insulation) Material	Features	Shield Material	Number of Conductors	Conductor Insulation	Wire Gauge	Length	Shield Type	Jacket Color	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage
SAB North America DC3331804TP	Poly-Vinyl Chloride (PVC)	Oil Resistant	Copper, Tinned	8	Poly-Vinyl Chloride (PVC)	18 AWG	Enter Number of Feet in Order Quantity	Braid, Foil	Gray	Multi-Pair	Copper, Tinned	-25 °C	105 ░C	12.09 mm	0.476 in	19	30 AWG	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil, Braid Enter Number of Feet in Order Quantity
