3FR-1000-2-BK-S
ActiveBRADY
SLEEVE, 1 IN DIA X 2 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3FR-1000-2-BK-S
ActiveBRADY
SLEEVE, 1 IN DIA X 2 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3FR-1000-2-BK-S | 3FR-1000 Series |
|---|---|---|
| - | - | |
| Color | Black | White, Yellow, Black |
| Label Size [Max] | 24.1 mm | 24.1 mm |
| Label Size [Max] | 0.95 " | 0.95 " |
| Label Size [Min] | 11.4 mm | 11.4 mm |
| Label Size [Min] | 0.45 " | 0.45 " |
| Label Size [x] | 2 " | 1 - 2 " |
| Label Size [x] | 50.8 mm | 50.8 mm |
| Label Size [y] | 1.66 in | 1.66 " |
| Label Size [y] | 42.2 mm | 42.2 mm |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
3FR-1000 Series
SLEEVE, 1 IN DIA X 2 IN W
| Part | Label Size [x] | Label Size [Max] | Label Size [y] | Label Size [Min] | Material | Color | Label Type | Label Size [Min] | Label Size [x] | Label Size [Max] | Label Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 3FR-1000-2-WT | |||||||||||
BRADY 3FR-1000-2-WT-S-2 | 1 " | 0.95 " | 1.66 " | 0.45 " | Polyolefin (PO) | White | Heat Shrinkable | ||||
BRADY 3FR-1000-2-YL | 2 " | 0.95 " | 1.66 in | 0.45 " | Polyolefin (PO) | Yellow | Heat Shrinkable | 11.4 mm | 50.8 mm | 24.1 mm | 42.2 mm |
BRADY 3FR-1000-2-BK-S-2 | 1 " | 0.95 " | 1.66 " | 0.45 " | Polyolefin (PO) | Black | Heat Shrinkable | ||||
BRADY 3FR-1000-2-YL-2 | 1 " | 0.95 " | 1.66 " | 0.45 " | Polyolefin (PO) | Yellow | Heat Shrinkable | ||||
BRADY 3FR-1000-2-WT-S | |||||||||||
BRADY 3FR-1000-2-BK-2 | 1 " | 0.95 " | 1.66 " | 0.45 " | Polyolefin (PO) | Black | Heat Shrinkable | ||||
BRADY 3FR-1000-2-WT-2 | 1 " | 0.95 " | 1.66 " | 0.45 " | Polyolefin (PO) | White | Heat Shrinkable | ||||
BRADY 3FR-1000-2-BK | 2 " | 0.95 " | 1.66 in | 0.45 " | Polyolefin (PO) | Black | Heat Shrinkable | 11.4 mm | 50.8 mm | 24.1 mm | 42.2 mm |
BRADY 3FR-1000-2-YL-S | 2 " | 0.95 " | 1.66 in | 0.45 " | Polyolefin (PO) | Yellow | Heat Shrinkable | 11.4 mm | 50.8 mm | 24.1 mm | 42.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 337.21 | |
Description
General part information
3FR-1000 Series

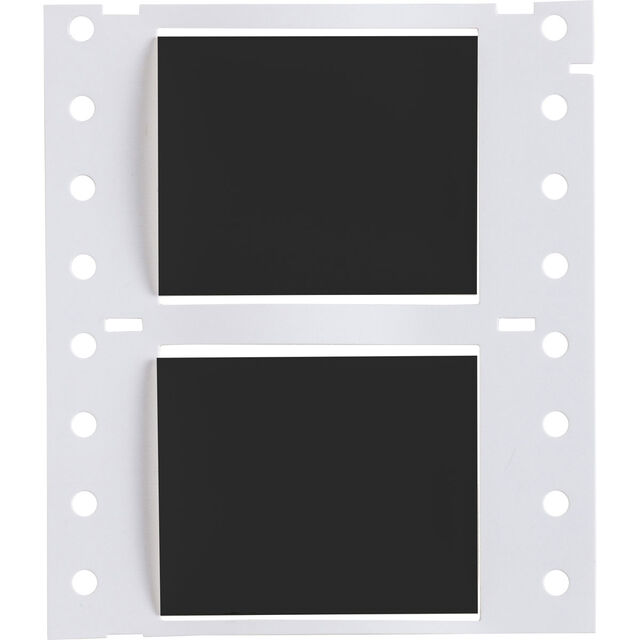

Black Heat Shrinkable Label 2.00" W x 1.66" H (50.8mm x 42.2mm); Cable O.D. 0.45" ~ 0.95" (11.4mm ~ 24.1mm)
