MMF404666
ActiveMicro-Measurements (Division of Vishay Precision Group)

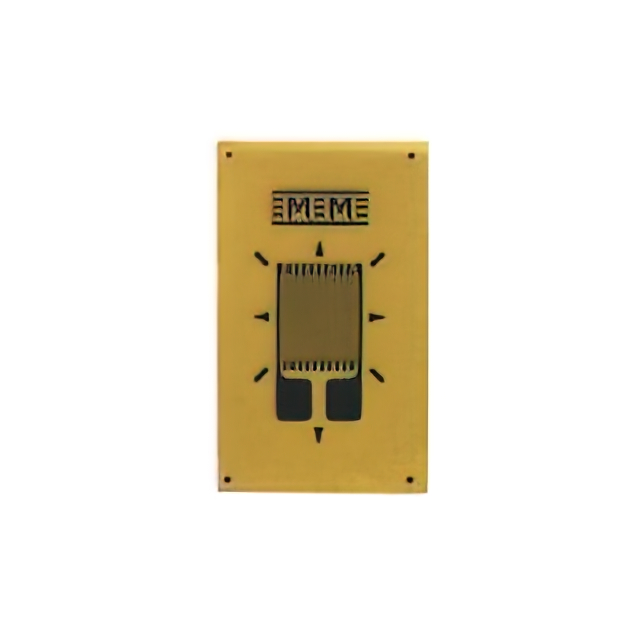

EA-13-062AQA-350 - STRAIN GAGES
MMF404666
ActiveMicro-Measurements (Division of Vishay Precision Group)
EA-13-062AQA-350 - STRAIN GAGES
Description
General part information
MMF404666
Linear Strain Gauge ±3% 0.062" (1.57mm) 0.062" (1.57mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404666 |
|---|---|
| Length - Active | 0.062 in |
| Length - Overall | 0.26 in |
| Length - Overall Pattern | 0.114 in |
| Length - Overall Pattern (mm) | 2.9 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Linear |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.15 % |
| Strain Range | 3 % |
| Width - Active | 0.062 in |
| Width - Overall | 0.15 in |
| Width - Overall Pattern | 0.062 in |
