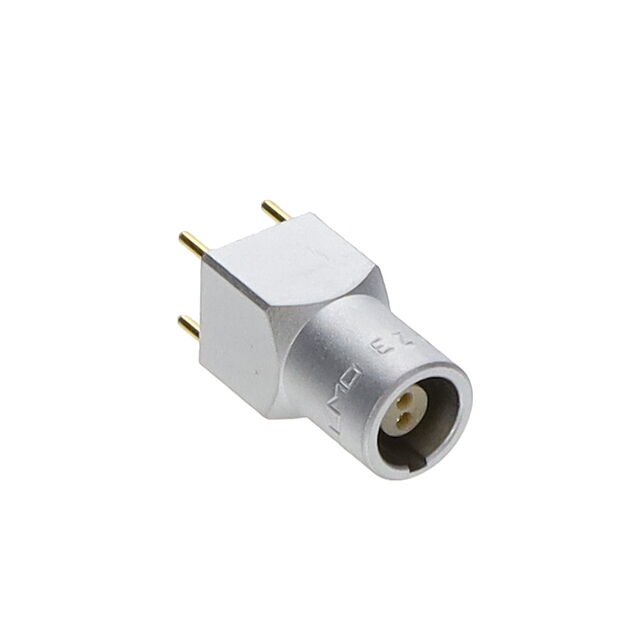

EZG.00.302.CLN
ActiveLEMO
CONN RCPT FMALE 2POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZG.00.302.CLN
ActiveLEMO
CONN RCPT FMALE 2POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZG.00.302.CLN | EZG.00.302 Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Board Guide | Board Guide |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 302 | 302 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EZG.00.302 Series
CONN RCPT FMALE 2POS GOLD SOLDER
| Part | Mounting Type | Number of Positions | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Shell Material | Contact Material | Shell Size - Insert | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Connector Type | Shell Finish | Shielding | Primary Material | Contact Finish - Mating | Insert Material | Fastening Type | Material Flammability Rating | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EZG.00.302.CLN | Through Hole | 2 | 5 A | -55 °C | 250 °C | Board Guide | Silver | Brass | Bronze | 302 | Solder | 59 Áin | 1.5 Ám | IP50 | Receptacle, Female Sockets | Chrome | Shielded | Metal | Gold | Polyetheretherketone (PEEK) | Push-Pull | UL94 V-0 | G |
LEMO EZG.00.302.NLN | Through Hole | 2 | 5 A | -55 °C | 250 °C | Board Guide | Silver | Brass | Bronze | 302 | Solder | 59 Áin | 1.5 Ám | IP50 | Receptacle, Female Sockets | Nickel | Shielded | Metal | Gold | Polyetheretherketone (PEEK) | Push-Pull | UL94 V-0 | G |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.82 | |
| 10 | $ 24.36 | |||
| 25 | $ 23.31 | |||
| 50 | $ 22.56 | |||
| 100 | $ 21.81 | |||
| 250 | $ 20.60 | |||
Description
General part information
EZG.00.302 Series
2 Position Circular Connector Receptacle, Female Sockets Solder
