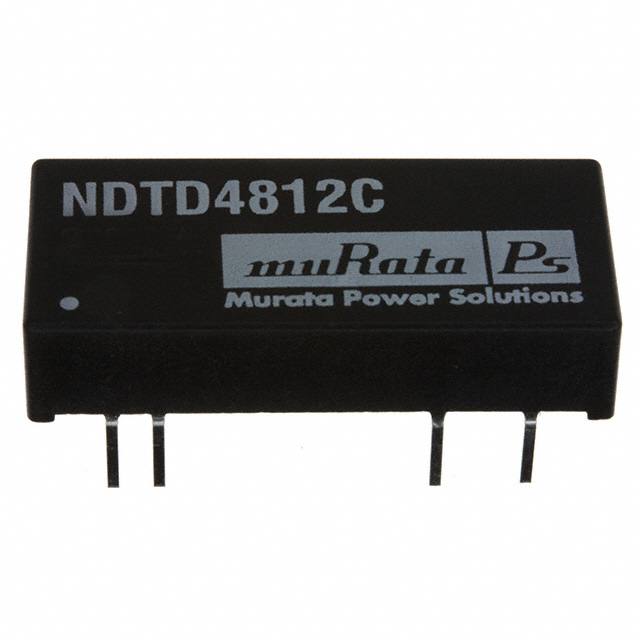

NDTD4812C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDTD4812C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDTD4812C | NDTD48 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 125 mA | 125 - 454 mA |
| Current - Output (Max) | 125 mA | 125 mA |
| Current - Output (Max) | - | 300 - 454 mA |
| Efficiency | 80 % | 72 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module (600 mil, 8 Leads) | 24-DIP Module (600 mil, 8 Leads) |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [x] | 32.3 mm | 32.3 mm |
| Size / Dimension [y] | 0.58 " | 0.58 " |
| Size / Dimension [y] | 14.7 mm | 14.7 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 12 V | 3.3 - 12 V |
| Voltage - Output 2 | -12 V | -12 - -3.3 V |
NDTD48 Series
DC DC CONVERTER +/-12V 3W
| Part | Applications | Efficiency | Current - Output (Max) | Current - Output (Max) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Isolation | Package / Case | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDTD4812C | ITE (Commercial) | 80 % | 125 mA | 125 mA | Isolated Module | 85 °C | -40 °C | 3 W | 1000 V | 24-DIP Module (600 mil, 8 Leads) | 75 V | 2 | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 12 V | 36 V | Through Hole | -12 V | |
Murata Power Solutions Inc. NDTD4805C | ITE (Commercial) | 76 % | Isolated Module | 85 °C | -40 °C | 3 W | 1000 V | 24-DIP Module (600 mil, 8 Leads) | 75 V | 2 | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 5 V | 36 V | Through Hole | -5 V | 300 mA | ||
Murata Power Solutions Inc. NDTD4803C | ITE (Commercial) | 72 % | 454 mA | Isolated Module | 85 °C | -40 °C | 3 W | 1000 V | 24-DIP Module (600 mil, 8 Leads) | 75 V | 2 | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 3.3 V | 36 V | Through Hole | -3.3 V | 454 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDTD48 Series
Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
