FMC2525085-12
ActiveFairview Microwave
COAX CBL MINI SMP-MINI SMP 12"
FMC2525085-12
ActiveFairview Microwave
COAX CBL MINI SMP-MINI SMP 12"
Description
General part information
FMC2525085-12

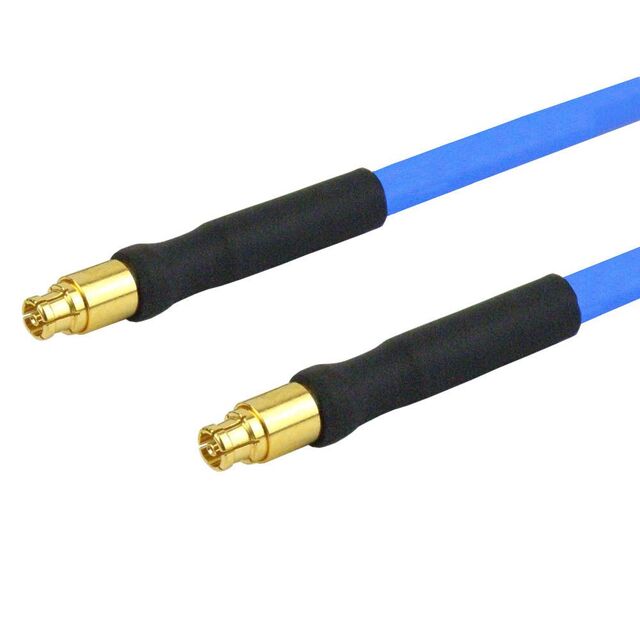

Cable Assembly Coaxial Mini SMP to Mini SMP Hand Formable .047 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC2525085-12 |
|---|---|
| 1st Connector | Mini SMP Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Mini SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | Mini SMP |
