1-1102153-1
ActiveTE Connectivity AMP Connectors

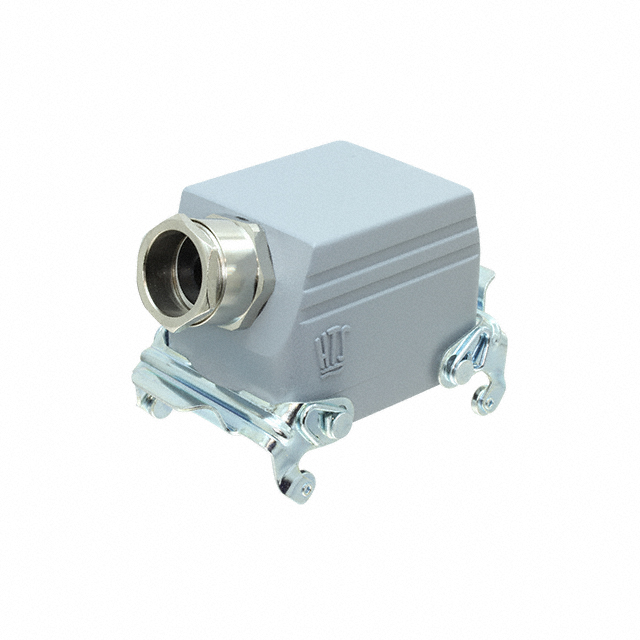

CONN HOOD SIDE ENTRY SZ7 PG21
Deep-Dive with AI
Search across all available documentation for this part.
1-1102153-1
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ7 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102153-1 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Lock Location | Locking Clip (2) on Hood |
| Size | 7 |
| Size / Dimension [x] | 82 mm |
| Size / Dimension [x] | 3.228 " |
| Size / Dimension [y] | 2.205 " |
| Size / Dimension [y] | 56 mm |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.362 " |
| Style | Side Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.72 | |
| 10 | $ 45.39 | |||
1102153 Series
CONN HOOD SIDE ENTRY SZ7 PG21
| Part | Size | Housing Material | Housing Finish | Housing Color | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Lock Location | Connector Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102153-1 | 7 | Aluminum Alloy, Die Cast | Powder Coated | Gray | PG21 | 82 mm | 2.205 " | 60 mm | 3.228 " | 2.362 " | 56 mm | Locking Clip (2) on Hood | Hood | Side Entry |
Description
General part information
1102153 Series
Hood Connector Side Entry PG21 7
