PHV12-350S10N

Active

Bellnix Co., Ltd.

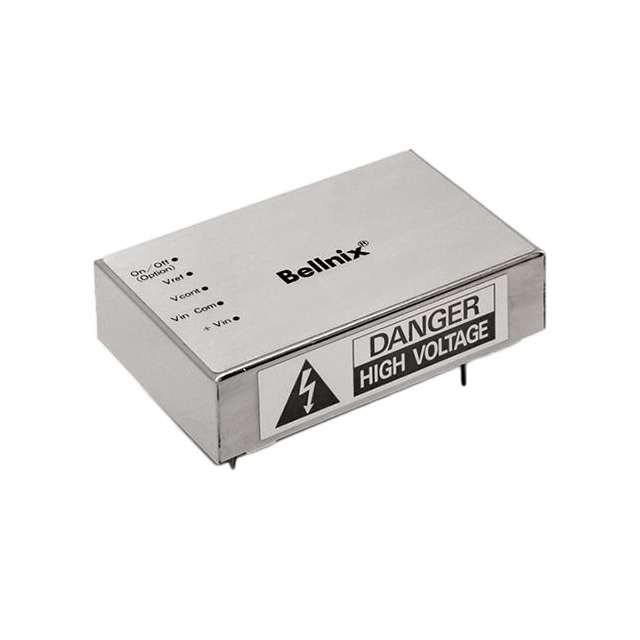

DC DC CONVERTER -350V 3.5W

Deep-Dive with AI

Search across all available documentation for this part.

PHV12-350S10N

Active

Bellnix Co., Ltd.

DC DC CONVERTER -350V 3.5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 207.91
		10	$ 201.21

Description

General part information

PHV12 Series

High Voltage - Non-Isolated Module DC DC Converter 1 Output -350V 10mA 10.8V - 16.5V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHV12-350S10N	PHV12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	10 mA	2.5 - 10 mA
Efficiency	68 %	68 - 72 %
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-10 °C	-10 °C
Package / Case	7-DIP Module, 6 Leads	7-DIP Module, 6 Leads
Power (Watts)	3.5 W	3.5 - 5 W
Size / Dimension [x]	2.36 in	2.36 in
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [z]	0.59 in	0.59 - 0.79 in
Size / Dimension [z]	15 mm	15 - 20 mm
Type	High Voltage - Non-Isolated Module	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	16.5 V	16.5 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Output 1	-350 V	-2000 - 2000 V

PHV12 Series

DC DC CONVERTER -1000V 5W

Part	Power (Watts)	Mounting Type	Number of Outputs	Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Applications	Package / Case	Control Features	Efficiency	Voltage - Input (Min) [Min]	Features
Bellnix Co., Ltd. PHV12-1.0K5000N	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	-1000 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	5 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active Low, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-350S10N	3.5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	-350 V	50 °C	-10 °C	0.59 in	1.57 "	15 mm	60 mm	2.36 in	40 mm	10 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active Low, Enable	68 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-2.0K2500N	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	-2000 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	2.5 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active Low, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-2.0K2500P	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	2000 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	2.5 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active High, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-0.5K10000P	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	500 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	10 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active High, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-0.5K10000N	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	-500 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	10 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active Low, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-1.0K5000P	5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	1000 V	50 °C	-10 °C	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	5 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active High, Enable	72 %	10.8 V	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. PHV12-350S10P	3.5 W	Through Hole	1	High Voltage - Non-Isolated Module	16.5 V	350 V	50 °C	-10 °C	0.59 in	1.57 "	15 mm	60 mm	2.36 in	40 mm	10 mA	ITE (Commercial)	7-DIP Module, 6 Leads	Active High, Enable	68 %	10.8 V	Adjustable Output, Remote On/Off
