UES1106SM-1

Active

Microchip Technology

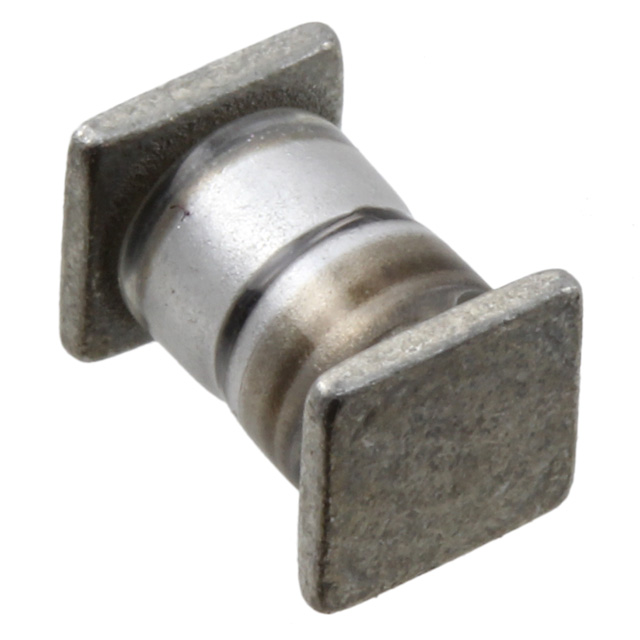

DIODE SWITCHING 2-PIN 2.0A, 400V A-MELF

Search across all available documentation for this part.

Active

Microchip Technology

DIODE SWITCHING 2-PIN 2.0A, 400V A-MELF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UES1106SM-1	UES1106SM-Rectifier Series

	-	-
Current - Average Rectified (Io)	2 A	2 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Reverse Recovery Time (trr)	50 ns	50 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	A, SQ-MELF	A, SQ-MELF
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V	400 V
Voltage - Forward (Vf) (Max) @ If	1.25 V	1.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 32.06
Microchip Direct	N/A	1	$ 34.53

Diode Switching 2-Pin 2.0A, 400V A-MELF

Part	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Microchip Technology UES1106SM	A, SQ-MELF	1.25 V	2 A	200 mA, 500 ns	400 V	50 ns	Standard	Surface Mount
Microchip Technology UES1106SM
Microchip Technology UES1106SM-1/TR
Microchip Technology UES1106SM/TR
Microchip Technology UES1106SM-1	A, SQ-MELF	1.25 V	2 A	200 mA, 500 ns	400 V	50 ns	Standard	Surface Mount	10 µA	175 ░C	-55 C
Microchip Technology UES1106SM

General part information

The UES1104 series is specifically for operation in power switching circuits operating at frequencies of at least 20 KHz.
